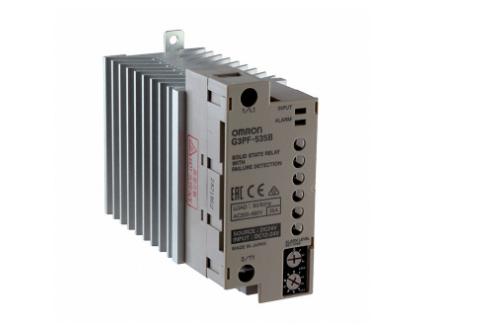

OMRON G3PF-535B 24VDC Solid State Relay ທີ່ມີຕົວປ່ຽນປະຈຸບັນໃນຕົວ (1 phase, 9.6-26.4 VDC)
Application: ON/OFF control
Mounting method: DIN rail/screw
Terminal: Screw
Complete with socket: X
LED indicator: ✓
Rated operational voltage, AC: 200-480 V
Operating voltage range, AC: 180-528 V
Control current max.: 10 mA
Must operate voltage max.: 9.6 V
Must release voltage min.: 1 V
Maximum operating temperature: 60 °C
Minimum operating temperature: -20 °C
Isolation: Phototriac
Functions: HB/HS alarm for 3-phase heaters
Number of phases: 1
Rated operation current Ie at AC-1: 35 A
Product Height (unpacked): 100 mm
Product Width (unpacked): 55 mm
Product Depth (unpacked): 130 mm
Supply voltage DC: 9.6-26.4 V
Switching at zero-crossing: ✓
