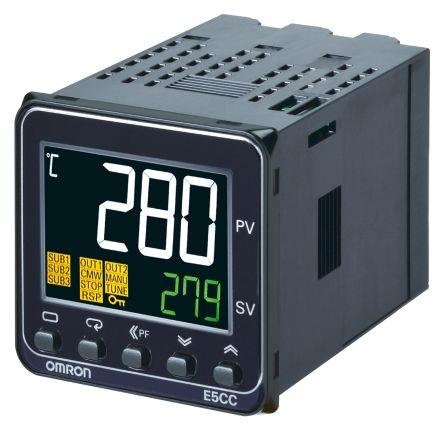

Dimension: H48xW48
Display: LED screen 11 white color
Number size: real value PV: 15.2 mm, setting value SV: 7.1 mm
Power source: A symbol indicates voltage: 100-240VAC50/60Hz,
Input: thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II
Anti-Platimum thermometer: Pt100 or JPt100
IR temperature sensor(ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or140 to 260°C
Analog input:1-5VDC, 0-5VDC, 0-10VDC, DC4-20mA
Output
Controlling input:
- Relay: SPST-NO, 250VAC 3A
Sub output:
- number: 2
- output parameters: relay N.O, 250 VAC, 3-output models: 2 A( resistance load).
Sampling circle: 50 ms
Controlling method: ON/OFF, 2-PID
Functions: Manual output, hot/cold control, control circuit break alarm, set value ramp, other alarm functions, heater fire alarm (Including semiconductor relay failure alarm), 40 %AT, 100% AT, valve opening percentage limit, input number filter, self-regulating, hard adjustment feature, real value input shift, start/stop, protection function, square root, valve opening percentage change rate limit, simple calculation, temperature status display, simple setting, input average value calculation, display brightness setting.
Communication: -
Connector type
S: Duel
Set-up type
Mount on cabinet door, screw on electrical cabinet
Accessories
Mounting cabinet door, base (sold separately)
Protection level
Front:IP66,Back:IP20,Terminal:IP00
Standards: CSA, UL, KOSHA, EN
