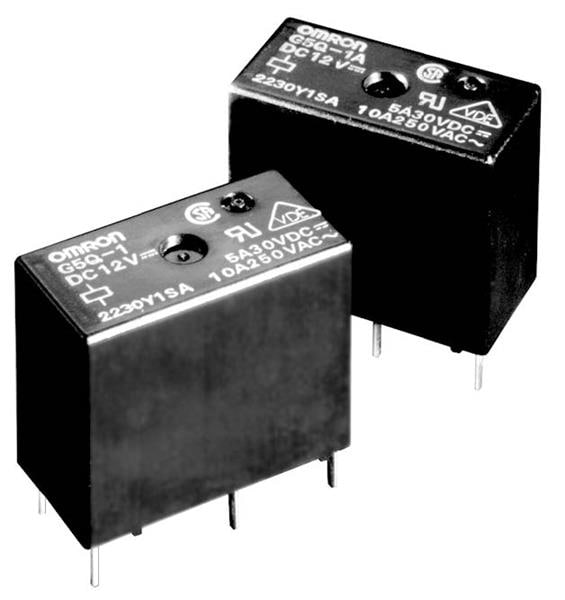

Omron Electronics G5Q-1-EU DC12 ຣີເລຍບີຊີພີພະນັກງານພະນັກງານຂະໜາດນ້ອຍ

Width: 10.3 mm

Height: 15.8 mm

Length: 20.3 mm

Coil Type: Non-Latching

Unit Weight: 6.500 g

Coil Current: 33.3 mA

Coil Voltage: 12 VDC

Contact Form: SPDT (1 Form C)

Mounting Style: Through Hole

Coil Resistance: 360 Ohms

Coil Termination: Solder Pin

Contact Material: Silver Alloy (Ag)

Power Consumption: 400 mW

Switching Voltage: 277 VAC, 30 VDC

Relay Contact Form: 1 Form C (SPDT-NO, NC)

Contact Termination: Solder Pin

Contact Current Rating: 10 A

Maximum Switching Current: 5 A
