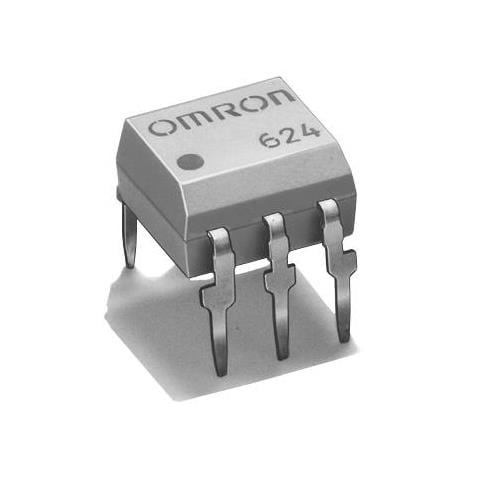

Omron Electronics G3VM-601BY ສະຫນາມກະທົບສູງ 600V SPSTNO DIP6 PCB 100mA 30ohm 120pF

Width: 6.4 mm

Height: 3.65 mm

Length: 7.12 mm

Output Type: MOSFET

Unit Weight: 250 mg

Contact Form: SPST (1 Form A)

Input Current: 50 mA

Input Voltage: 5 V

Mounting Style: PCB Mount

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 100 mA

Load Voltage Rating: 600 VAC, 600 VDC

Control Voltage Range: 1 VDC to 1.3 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
