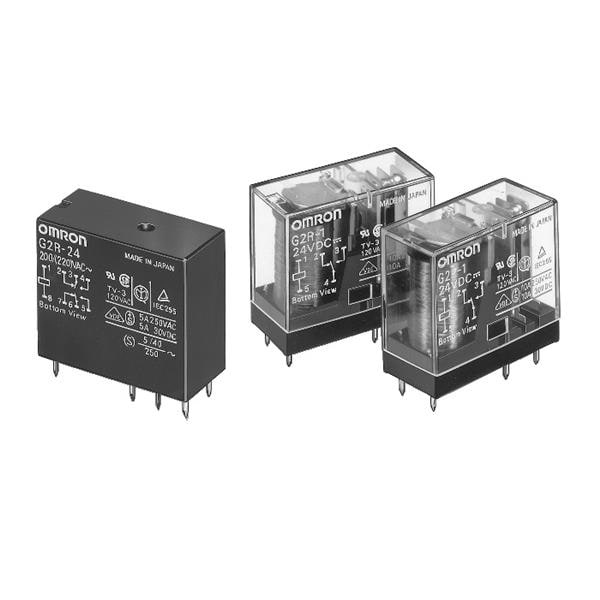

Omron Electronics G2R-24-H-AUL DC12 ຣີເລຍບີຊີບພວດມາດຕະຖານ

Width: 12.8 mm

Height: 25.5 mm

Length: 29 mm

Coil Type: Non-Latching

Unit Weight: 17 g

Coil Current: 75 mA

Coil Voltage: 12 VDC

Contact Form: DPDT (2 Form C)

Contact Rating: 5 A at 250 VAC

Mounting Style: Through Hole

Coil Resistance: 65 Ohms

Coil Termination: Solder Pin

Contact Material: Silver Alloy (Ag)

Power Consumption: 900 mW

Switching Voltage: 380 VAC, 125 VDC

Relay Contact Form: 2 Form C (DPDT-NO, NC)

Contact Termination: Solder Pin

Contact Current Rating: 4 A

Maximum Switching Current: 5 A
