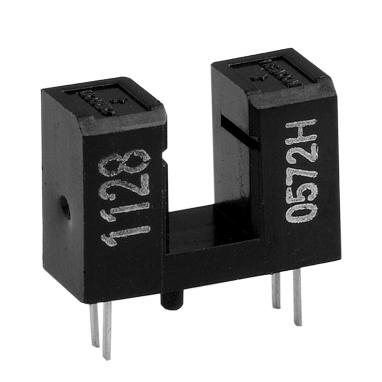

Omron Electronics EE-SX1128 ອຸປະກອນສະລິດແບບແສງ, ສົ່ງຜ່ານ, ອອກສະຫນາມພອດຕໂຣນສະຕໍາ, ສຳລັບບົດປະສົງທົ່ວໄປ PCB ຊ້ອງກວ້າງ 4.2mm

Width: 5.2 mm

Height: 9.3 mm

Length: 13.5 mm

Fall Time: 4 us

Rise Time: 4 us

Slot Width: 4.2 mm

Wavelength: 940 nm

Output Type: Phototransistor

Unit Weight: 2.442 g

Aperture Width: 0.5 mm

Mounting Style: Through Hole

Sensing Method: Transmissive, Slotted

Termination Style: Solder Pin

Number of Channels: 1 Channel

If - Forward Current: 50 mA

Vr - Reverse Voltage: 4 V

Pd - Power Dissipation: 100 mW

Maximum Collector Current: 20 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Collector- Emitter Voltage VCEO Max: 30 V
