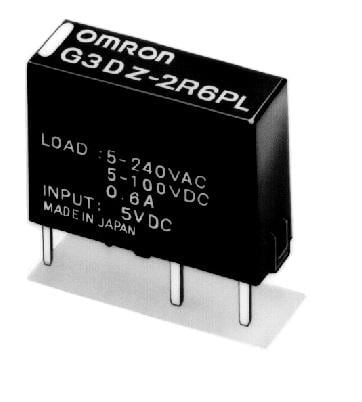

Omron Automation and Safety G3DZ-2R6PL DC24 ຄອນໂຕລເລີ SOLID STATE RELAY

Width: 6.5 mm

Height: 12.5 mm

Length: 17.5 mm

Output Type: MOSFET

Unit Weight: 3.100 g

Input Current: 50 mA

Mounting Style: PCB Mount

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 600 mA

Load Voltage Rating: 3 VAC to 264 VAC

Control Voltage Range: 19.2 VDC to 28.8 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Input to Output Isolation Method: Optocoupler
