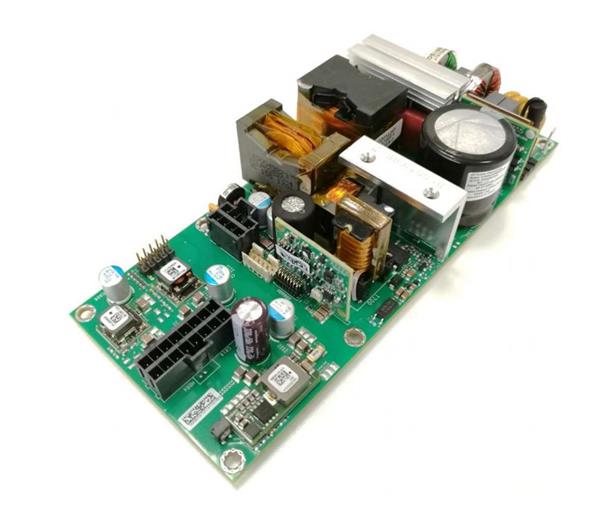

OmniOn Power (Formerly ABB Power Conversion) FLP0412FPMXXZ01A ເພາະພາບພະລັງງານປິດ 450W 12V/37.5A, 24V/ 2A, 5V/12A, 3.3V/12A

Width: 76.2 mm (3 in)

Height: 35.56 mm (1.4 in)

Length: 177.8 mm (7 in)

Industry: Industrial

Approvals: CB, CE, cUL, TUV, UL

Compliance: CB, CE, cUL, TUV, UL

Efficiency: 89 %

Unit Weight: 420 g

Output Power: 450 W

Input Voltage: 90 VAC to 265 VAC

Mounting Style: Chassis

Load Regulation: Regulated

Number of Outputs: 4 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 37.5 A

Output Current-Channel 2: 2 A

Output Current-Channel 3: 12 A

Output Current-Channel 4: 12 A

Output Voltage-Channel 1: 12 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: 5 VDC

Output Voltage-Channel 4: 3.3 VDC

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
