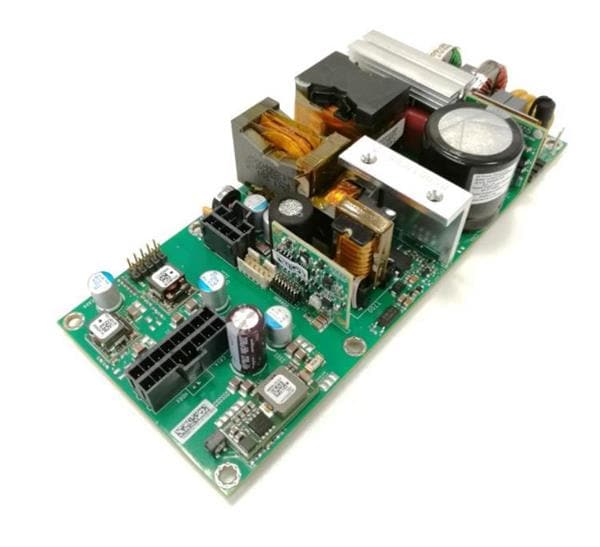

OmniOn Power (Formerly ABB Power Conversion) FLP0412FP3XXZ01A ເພາະພາບພະລັງງານ 450W ເພາະພາບ 3x7 ອອກ DC ສາມຕົວ (24V/12V/5V); ຕົວອອກ Vout ຄົງທີ່

Width: 76.2 mm (3 in)

Height: 36.8 mm (1.449 in)

Length: 178 mm (7.008 in)

Industry: ITE, Industrial

Efficiency: 91.9 %

Output Power: 450 W

Input Voltage: 90 VAC to 265 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 3 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 37.5 A

Output Current-Channel 2: 2 A

Output Current-Channel 3: 12 A

Output Voltage-Channel 1: 12 VDC

Output Voltage-Channel 2: 24 VDC

Output Voltage-Channel 3: 5 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
