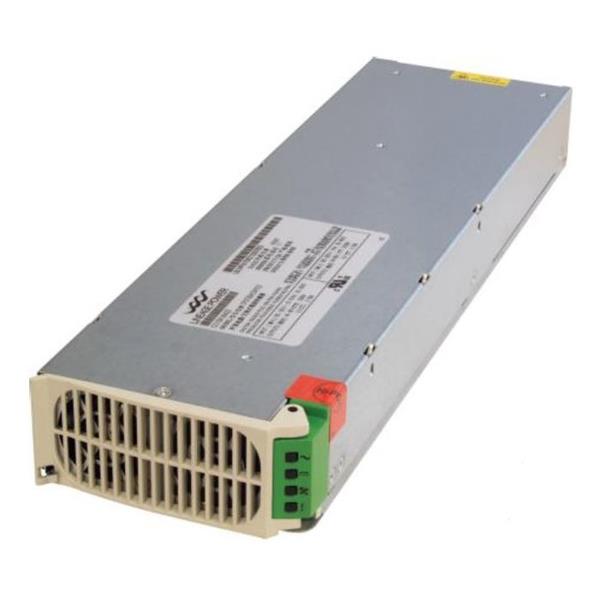

OmniOn Power (Formerly ABB Power Conversion) CP2000AC48TEZ-FB RECTIFIER ຕົວປັບກະຕຸ້ນທີ່ມີປະສິດຕິພາບສູງ 2250W Rectifier 52V 43.3A

Width: 101.6 mm (4 in)

Height: 41.4 mm (1.63 in)

Length: 351.2 mm (13.827 in)

Industry: Industrial

Approvals: CAN/CSA, CE, UL, VDC

Compliance: CAN/CSA, CE, UL, VDC

Efficiency: 95 %

Unit Weight: 2.306 kg

Output Power: 2.25 kW

Input Voltage: 100 VAC to 120 VAC, 220 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 66 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 43.3 A

Output Voltage-Channel 1: 18 VDC to 53 VDC

Operating Temperature Range: - 40 C to + 55 C

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 40 C
