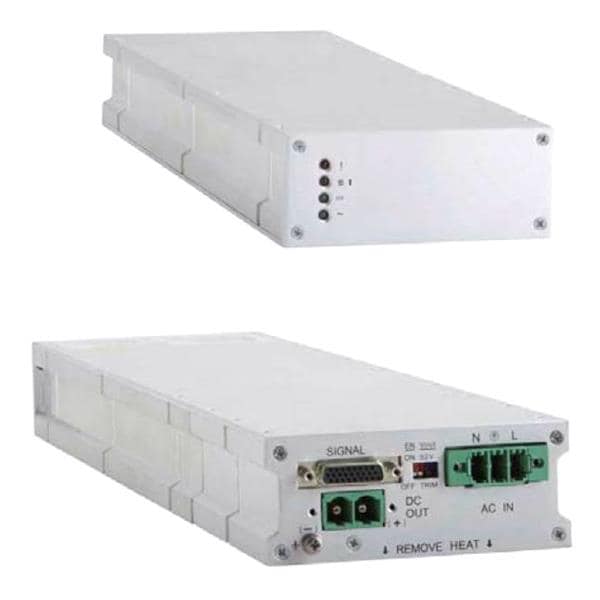

OmniOn Power (Formerly ABB Power Conversion) CC3500AC52FB2 RECTIFIER ຕົວປັບກະຕຸ້ນທີ່ເຢັນດ້ວຍການນໍາຄວາມຮ້ອນ 3.5kW Rectifier 18-53Vdc

Width: 118 mm (4.646 in)

Height: 47.5 mm (1.87 in)

Length: 333 mm (13.11 in)

Industry: Industrial

Approvals: CAN/CSA, CE, UL

Compliance: CAN/CSA, CE, UL

Efficiency: 96 %

Unit Weight: 4.1 kg

Output Power: 1.5 kW, 3.5 kW

Input Voltage: 100 VAC to 120 VAC, 200 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 66 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 28.9 A, 67.3 A

Output Voltage-Channel 1: 18 VDC to 58 VDC

Operating Temperature Range: - 40 C to + 75 C

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 40 C
