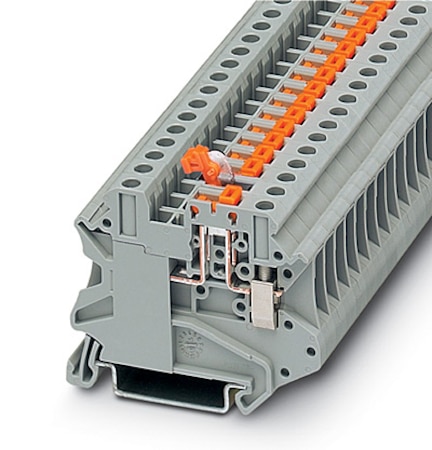

OMEGA XBUT4MT ບລັອກຕໍ່ສາຍສະເພາະສຳລັບການເຊື່ອມຕໍ່ດ້ວຍກຸ່ມສະເພາະແລະອົງປະກອບ (Knife Disconnect)
Wire Gauge: N/A
Cover Width: 2.2 mm
Thread Type: Metric
Amperage, Max: 0 A
Color Options: Yellow
Accessory Type: Knife Disconnect
Terminal Width: 6.2 mm
Voltage Rating: N/A
Wire Size, Max: 4 mm²
Load Current, Max: 16 A
Tightening Torque: 5.3 to 7.1 Nm
Cross-Section Area: 6 mm²
V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings for Disconnect)=600 V;Voltage Rating Connection Data=500 V;Amperage, Max (UL-cUL Ratings for Disconnect)=16 A;Wire Gauge Connection Data=26 to 10 AWG;Wire Gauge (UL-cUL Ratings for Disconnect)=26 to 10 AWG;Amperage, Max (Connection Data) = 16 A
Contamination Class: 3
Rated Surge Voltage: 6 kV
Additional Features 1: Wide Disconnect Terminal Blocks
Compatible Wiring Note: Stranded with Ferrule=0.25 - 4 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 2.5 mm²;Stranded with Ferrule with Plastic Sleeve=0.25 to 4 mm²;Solid=0.14 - 1.5 mm²
Insulation Strip Length: 9 mm
