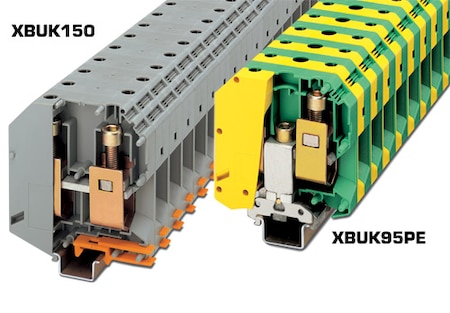

OMEGA XBUK150 ບລອກຕໍ່ສາຍກະສິກສູງ, ຄວາມກວ້າງ 25 ມມ (0.98 ນິ້ວ), ສາມາດຮັບກະສິກໄດ້ສູງສຸດ 232 A (Terminal Block)
Wire Gauge: N/A
Thread Type: Metric
Amperage, Max: 0 A
Color Options: Black
Accessory Type: Terminal Block
Terminal Width: 31 mm
Voltage Rating: N/A
Wire Size, Max: 150 mm²
Load Current, Max: 309 A
Tightening Torque: 25 to 30 Nm
Cross-Section Area: 150 mm²
V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=726 V;Voltage Rating (IEC 60 947-7-1)=1000 V;Amperage, Max (IEC 60 947-7-1)=309 A;Amperage, Max (EN 50 019)=265 A;Amperage, Max (UL-cUL Ratings)=285 A;Wire Gauge (IEC 60 947-7-1)=2 to 300 AWG;Wire Gauge (EN 50 019)=2 to 300 AWG;Wire Gauge (UL-cUL Ratings)=2 Kcmil to 300 Kcmil
Contamination Class: 3
Rated Surge Voltage: 8 kV
Additional Features 1: Screw connection high current terminal block
Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=50 - 150 mm²;Stranded with Ferrule=50 - 150 mm²;Stranded with Ferrule without Plastic Sleeve=25 - 50 mm²;Solid=25 - 50 mm²
Insulation Strip Length: 40 mm
