Materials: Copper Allloys/Polyamide 6.6 Housing
Insulation: PVC/PE
Wire Gauge: 26 to 10 AWG
Cover Width: 2.2 mm
Thread Type: Metric
Amperage, Max: 0 A
Color Options: Green/Yellow

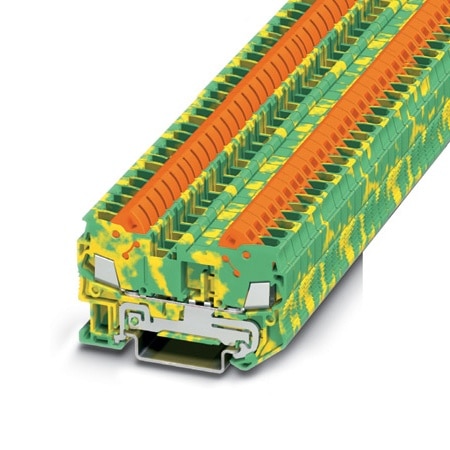

Accessory Type: Ground Block
Terminal Width: 6.2 mm
Voltage Rating: N/A
Wire Size, Max: 4 mm²
Tightening Torque: 0.6 to 0.8 Nm
V/A/AWG Compliance: Wire Gauge (IEC Screw Connection)=26 to 10 AWG;Wire Gauge (IEC IDC Connection)=20 to 14 AWG;Wire Gauge (UL-cUL Screw Connection)=26 to 10 AWG;Wire Gauge (UL-cUL IDC Connection)=14 to 24 AWG
Contamination Class: 3
Number of Terminals: 2
Rated Surge Voltage: 8 kV
Additional Features 1: IDC ground hybrid TB
Electrical Connection: Hybrid Terminal Block
Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²
Insulation Strip Length: 9 mm
