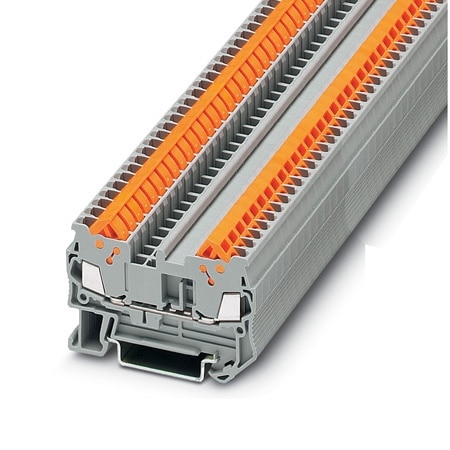

OMEGA XBQT15 ບລັອກຕໍ່ສາຍການປະຕິບັດການປົດອິນເຊີເລຊັນ (Insulation Displacement, 24 to 16 AWG)
Insulation: PVC/PE
Wire Gauge: 24 to 16 AWG
Cover Width: 2.2 mm
Thread Type: Metric
Amperage, Max: 0 A
Color Options: Gray
Terminal Width: 5.2 mm
Voltage Rating: N/A
Load Current, Max: 17.5 A
Tightening Torque: 0.6 to 0.8 Nm
Cross-Section Area: 1.5 mm²
V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=550 V;Voltage Rating Connection Data=800 V;Amperage, Max (EN 50 019)=16 A;Amperage, Max (UL-cUL Ratings)=0.4167 A;Wire Gauge (EN 50 019)=24 to 16 AWG;Wire Gauge (UL-cUL Ratings)=24 to 16 AWG;Wire Gauge Connection Data=24 to 16 AWG;Amperage, Max (Connection Data) = 17.5 A
Contamination Class: 3
Number of Terminals: 2
Rated Surge Voltage: 8 kV
Additional Features 1: IDC single level TB
Electrical Connection: Insulation Displacement
electrical-connection: Insulation Displacement
Compatible Wiring Note: Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 - 16 AWG;Stranded with Ferrule with Plastic Sleeve=0.25 to 2.5 mm²;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²
Insulation Strip Length: 9 mm
