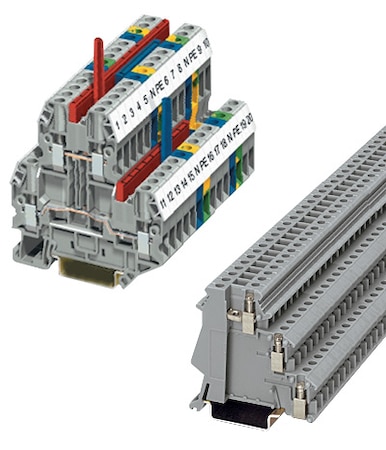

OMEGA XB3UKF25 ບລັອກຂໍ້ມູນສະເພາະລະດັບຄູ່ແລະສາມຂັ້ນ ຫຼື ບລັອກຂໍ້ມູນຕິດຕໍ່ເຊັນເຊີ (24 to 8 AWG, Triple level Feedthrough)

Wire Gauge: 24 to 8 AWG

Cover Width: 2.2 mm

Thread Type: Metric

Amperage, Max: 0 A

Color Options: Green/Yellow

Accessory Type: Triple level Feedthrough

Terminal Width: 8.2 mm

Voltage Rating: N/A

Wire Size, Max: 2.5 mm²

Load Current, Max: 30 A

Tightening Torque: 4.4 to 5.3 Nm

Cross-Section Area: 2.5 mm²

V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings)=300 V;Voltage Rating Connection Data=250 V;Amperage, Max (UL-cUL Ratings)=15 A;Wire Gauge (UL-cUL Ratings)=30 to 14 AWG;Wire Gauge Connection Data=24 to 12 AWG;Amperage, Max (Connection Data) = 26 A

Contamination Class: 3

Number of Terminals: 2

Rated Surge Voltage: 4 kV

Additional Features 1: Wide double level Terminal Blocks

Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=0.25 - 6 mm²;Stranded with Ferrule=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 4 mm²;Solid=0.2 - 2.5 mm²

Insulation Strip Length: 9 mm
