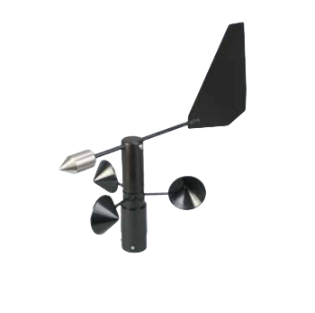

WMS-23 (Wind Speed and Direction) Wind speed/direction monitor, dual 4 to 20 mA outputs
Measurement Range: 0 to 100 mph
Transducer Type: Reed switch
Threshold Speed: 0.8 mph
Accuracy: 1 mph or ± 3%
Output: 4 to 20 mA, proportioned to 0 to 100 mph
Dimensions Anemometer: 114 H x 216 mm W (4.5 x 8.5")
Azimuth Accuracy: ± 3°
Range: 0 to 360°
Potentiometer Gap: 5°
Threshold: 1.2 mph
Bearings: Bushing
Outputs: Dual 4 to 20 mA loops, proportioned to 0 to 100 mph and to 0 to 360°
Dimensions, Anemometer/vane: 305 H x 254 mm W (12 x 10")
Current Loop Accuracy: ± 1% full scale
Power: 8 to 30 Vdc
Circuit Time Constant: 1 sec
Temperature Range: -40 to 40°C (-40 to 104°F)
Dimensions Electronics Enclosure: 120 x 120 x 57 mm D (4.7 x 4.7 x 2.25")
Comes with dual 4 to 20 mA outputs, Cable 12 m (40') and operator’s manual
