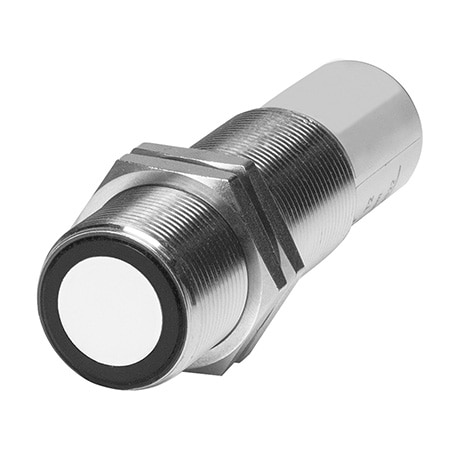

OMEGA UMR14-30MM-485 ຕົວສົ່ງສະຖານະລະດັບ/ລະດັບລະດັບກາງຂອງຄວາມຖືກຕ້ອງອຸດສາຫະກຳ Ultrasonic (30 mm, Metric Male, RS485, 14 ft)
Length: 4064 in
Memory: Non - Volatile
Accuracy: ± 0.5 %
Diameter: 1.2 in
Materials: 316 Stainless Steel
Resolution: 0.0034 in
Cable Length: 6.5 ft
Output Signal: Current, Voltage
Data Interface: RS485
Loop Resistance: 450 Ω max @ > 15 Vdc, 250 Ω max @ 10 Vdc
Electrical Output: 2 Outputs (4-20 mA,0-10 V)
Enclosure Ratings: IP68, NEMA Type 4X
Operating Humidity: 0 to 100% RH
Media Compatibility: Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
Measuring Range, Max: 14 ft
Measuring Range, Min: 4 ft
Transducer frequency: 120 kHz
Ultrasonic Beam Width: 12 ° at -3db
Operating Pressure, Max: 50 psi
Process Connection Size: 30 mm
Process Connection Type: Metric Male
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -40 °C
