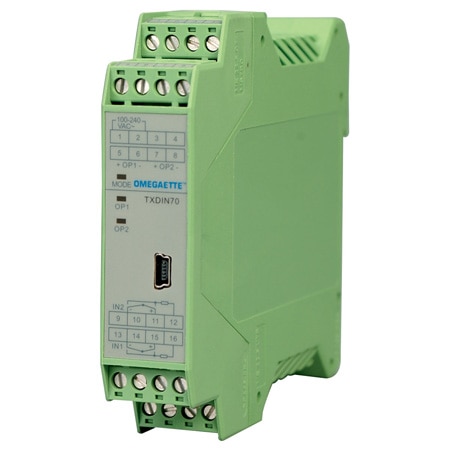

OMEGA TXDIN70-24V ຕົວສົ່ງອຸນຫະພູມສອງທາງບັນທຶກ Dual DIN Rail ມີອິນພຸດທີ່ສາມາດຕັ້ງໂປຣແກຣມໄດ້ (Thermocouple, RTD, Voltage, 0 to 20 mV, 0 to 60 mV, 0 to 100 mV, 0 to 1V, 0.2 to 1V, K: -50 to 1300°C , S: -50 to 1700°C , R: -50 to 1700°C, T: -200 to 350°C, E: 0 to 1000°C , J: 0 to 1200°C ,B*: 0 to 1800°C, N: -50 to 1300°C , WRe5%WRe26: 0 to 2300°C,Pt100: -200 to 900°C)
Drift: < 0.01 % FSO/°C
Width: 22.5 mm
Height: 100 mm
Length: 100 mm
Weight: 85 g
Accuracy: ± 0.3 %
Mounting: DIN Rail Mount
Approvals: CE
Input Type: Thermocouple, RTD, Voltage
EMC Standard: IEC 61000-4-4, IEC 61000-4-5
Output Value: Process
Accuracy Note: Retransmission Accuracy: 0.3% full scale ±1 digit (including input and output error)
Output Detail: Can be freely defined in the range of 0 to 22 mA with maximum output voltage ≥11V
Output Signal: Current
Supply Voltage: 24 Vdc
supply-voltage: 24 Vdc
Number of Inputs: 3
Electrical Output: 0 to 22 mA
Power Consumption: max 3 W
Relative Humidity: ≤90% RH
Supply Power Type: AC/DC
Voltage Measurement Range: 0 to 20 mV, 0 to 60 mV, 0 to 100 mV, 0 to 1V, 0.2 to 1V
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -10 °C
Temperature Measurement Range: K: -50 to 1300°C , S: -50 to 1700°C , R: -50 to 1700°C, T: -200 to 350°C, E: 0 to 1000°C , J: 0 to 1200°C ,B*: 0 to 1800°C, N: -50 to 1300°C , WRe5%WRe26: 0 to 2300°C,Pt100: -200 to 900°C
