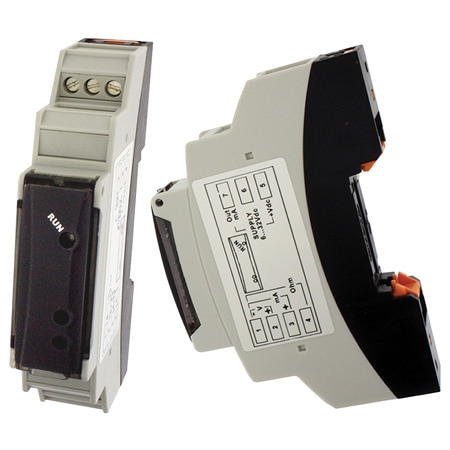

OMEGA TXDIN401 ຕົວສົ່ງສະເຫຼີມສະບັບ DIN ມີການສື່ສານ RFID (Thermocouple, RTD, Voltage, -10 to 70 mV, J: -200 to 1200°C, K: -260 to 1360°C , T: -260 to 400°C, E: -260 to 940°C,R: -40 to 1760°C, S: -40 to 1760°C (-40 to 3200°F), B: 40 to 1820°C, N: -260 to 1280°C,Pt100: -200 to 600°C, Ni100: 60 to 180°C)
CMRR: 50 to 60 Hz
Width: 18 mm
Height: 90 mm
Length: 64 mm
Memory: 2624 Word
Weight: 30 g
Mounting: DIN Rail Mount
Software: Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)
Approvals: CE, RoHS
Materials: Polycarbonate, Silicone
Input Type: Thermocouple, RTD, Voltage
Resolution: Output Resolution: 2 μA
Memory Note: Non-Volatile Memory (Circular Buffer) for Data Logging
Output Value: Process
Output Detail: Over-Range Output: fs + 5°C Under-Range Output: fs - 5°C
Output Signal: Current
Response Time: 600 msec
Sampling Rate: 300 milliseconds between updates
Supply Voltage: 6 to 32 Vdc
Number of Inputs: 3
Wire Code Option: 2 -, 3 - , 4- Wire
Electrical Output: FS + 5°C
Enclosure Ratings: IP20, NEMA
Relative Humidity: 30 to 90% RH (non condensing)
Supply Power Note: 2-wire loop powered; operating range 6 to 32 Vdc
Supply Power Type: Loop Powered
Electrical Connection: Screw Terminal
Sensor Break Detection: 21 mA or 3.8 mA,Selectable
Temperature Coefficient: <100 ppm
Standard Limits of Error: 0.1% FS or 0.2 °C whichever is greater
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Voltage Measurement Range: -10 to 70 mV
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
Temperature Measurement Range: J: -200 to 1200°C, K: -260 to 1360°C , T: -260 to 400°C, E: -260 to 940°C,R: -40 to 1760°C, S: -40 to 1760°C (-40 to 3200°F), B: 40 to 1820°C, N: -260 to 1280°C,Pt100: -200 to 600°C, Ni100: 60 to 180°C
