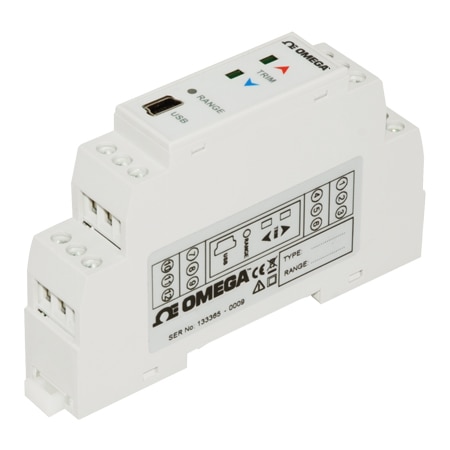

OMEGA TXDIN1600S ຕົວສົ່ງສະຕເຣນແກຈບົດບັນທຸກກຳລັງ DIN ມີອອບພຸດ Bipolar mA/V (Four Wire Bridge Radiometric, -38 to 38 mV dc)
Drift: < ± 0.05%
Width: 17.5 mm
Filter: 1 to 20 seconds to reach 70% of final value
Height: 90 mm
Length: 56.4 mm
Offset: Tare Input Type - Remote volt free contact, up to 10 meter distance
Weight: 70 g
Accuracy: ± 5 mV
Mounting: DIN Rail 43880, Color Grey
Software: Windows PC Software
Approvals: CE
Baud Rate: 19200
Isolation: 500 Vdc
Linearity: ±0.01%
Materials: Polyimide 6.6
Input Type: Four Wire Bridge Radiometric
Calibration: Calibration Scaling: 2 to 6 points signal against process;Active Calibration:Active calibration against live load cell
Shell Color: Gray
Update Rate: 10 or 80 SPS
Display Type: LED
Output Value: Process
Accuracy Note: Input Accuracy : (mA out/2000) or 5 uA whichever is the greater, drift 1 uA/°C, Output Accuracy: ± 5 mV
Output Detail: Current: Current Source: Range (0 to 21.5) mA, max load 750 Ω Current Sink: Range 0 to 21.5 mA, supply 10 to 30 Vdc, voltage effect 0.2 uA/V Output Voltage Current Drive: ± 2 mA, min load 5000 Ω @ 10 V
Output Signal: Current, Voltage
Approvals Note: CE: BS EN 61326
Data Interface: USB
LED Indicators: LED, Green when output -0.1 to 100.1%, all else red
Supply Voltage: 10 to 48 Vdc, 10 to 32 Vac
Impedance Input: Bridge: 85 to 10000 Ω
Input Range Note: -7.6 to 7.6 mV/V (-38 to 38) mV at 5V excitation
Number of Inputs: 1
Electrical Output: 0 to 21.5 mA
Enclosure Ratings: IP65
Relative Humidity: 10 to 90%RH (non condensing)
Supply Power Note: 10 to 48 Vdc, 10 to 32 Vac protected by internal 500 mA resettable fuse Power:< 1 W full power
Supply Power Type: AC/DC
Excitation Current: 59 mA
Excitation Voltage: 5 Vdc
Voltage Output Range: 0 to 10.1 V, ± 10.1 V
Additional Features 1: Tag Number: 20 Characters
Voltage Measurement Range: -38 to 38 mV dc
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -30 °C
