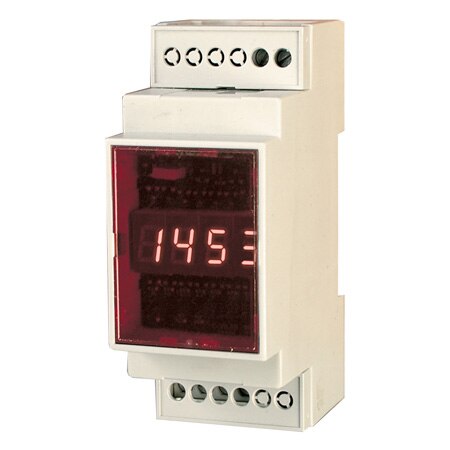

OMEGA TXDIN101 DIN Rail Universal Smart Transmitter w/ LED Display (Thermocouple, RTD, Voltage, -145 to 145 mV, K: 200 to 1370°C, J: -200 to 1200°C, E: -200 to 1000°C, N: -200 to 1300°C, T:-100 to 400°C, R: 0 to 1760°C, S: 0 to 1760°C , B: 100 to 1820°C, L: -190 to 890°C, D: 0 to 2230°C, G: 0 to 2160° C, C: 15 to 2320°C, Pt100: -200 to 850°C)
Width: 36 mm
Height: 58 mm
Length: 91 mm
Weight: 85 g
Mounting: DIN Rail Mount
Software: PC Software CONCAL for COM and USB ports
Materials: Plastic, Polycarbonate
Input Type: Thermocouple, RTD, Voltage
Cable Length: 1.5 m
Display Type: LED
Output Signal: Current
Data Interface: USB
Number of Inputs: 3
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP20, UL94 V-0
Electrical Connection: Screw Terminal
Voltage Measurement Range: -145 to 145 mV
Temperature Measurement Range: K: 200 to 1370°C, J: -200 to 1200°C, E: -200 to 1000°C, N: -200 to 1300°C, T:-100 to 400°C, R: 0 to 1760°C, S: 0 to 1760°C , B: 100 to 1820°C, L: -190 to 890°C, D: 0 to 2230°C, G: 0 to 2160° C, C: 15 to 2320°C, Pt100: -200 to 850°C
