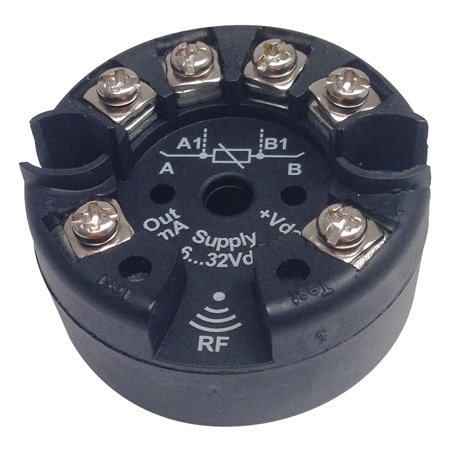

OMEGA TX401 ຕົວສົ່ງອຸນຫະພູມຕິດຕັ້ງຫົວຫນ້າມີການສື່ສານ RFID (RTD, Pt100: -200 to 800 °C; Pt1000: -200 to 800 °C; Ni100: -50 to 170 °C)
Height: 23 mm
Memory: 3966 Data Points
Weight: 30 g
Diameter: 45 mm
Mounting: DIN/B Head
RTD Type: Pt100, Pt1000, Ni100
Software: Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)
Approvals: CE,EN 61000-6-4, EN 61000-6-2
Isolation: Non-isolated
Input Type: RTD
Protection: Current 30 mA
Resolution: 1 μA
Calibration: Wireless with RFID technology (NFC)
Sensor Type: Transmitter
Probe Length: 0 mm
Output Detail: Output Error: Between 21.5 or 3.8 mA
Response Time: 600 ms
Sampling Time: 300 ms
Humidity Range: 30 to 90% RH non condensing
Setup Controls: Wireless with RFID technology (NFC)
Supply Voltage: 6 to 32 Vdc
Noise Rejection: 50 to 60 Hz
Sheath Material: N/A
Housing Material: Nylon (PA66)
Electrical Output: 4 to 20 mA
Enclosure Ratings: IP20, NEMA Type 1
Supply Power Note: 2-wire loop powered; operating range 6 to 32 Vdc
Supply Power Type: DC
Thermocouple Type: N/A
Input Control Signal: N/A
Lead Resistance, Max: 20 Ω
Electrical Connection: Screw Terminal
Programmable Functions: offset, Range, Sampling Frequency, Sensor Burnout Indication, sensor type
Wiring/Connector Table: Pt100: 2, 3, or 4-wire connection, Pt1000: 2-wire connection, Ni100: 2, 3, or 4-wire connection
Temperature Coefficient: 0.00385 Ω/°C
Temperature Input Range: Pt100: -200 to 800 °C; Pt1000: -200 to 800 °C; Ni100: -50 to 170 °C
Transmission Error, Max: 0.1% or 0.2°C
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -40 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
