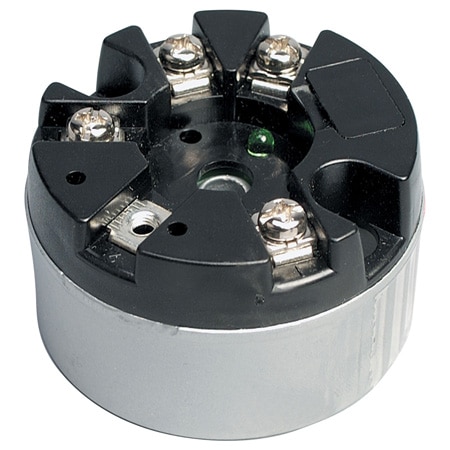

OMEGA TX31-J ຕົວສົ່ງສະຫນາມອຸບປະກອນວັດອຸນຫະພູມປະກອບກັບການຜະລິດອອກ (Thermocouple, J, 0 to 600°C)
Height: 27 mm
Weight: 65 g
Diameter: 45 mm
Isolation: Galvanic, 1000 Vrms Input/output , continuous
Linearity: ±0.01%
Input Type: Thermocouple
RFI Effect: < ±10% of span (5W, 470 MHz)
Wire Gauge: 22 to 12 AWG
Calibration: Trimpot/Switch
Output Load: 50 x (loop power - 12) Ω
Sensor Type: Transmitter
Probe Length: 0 mm
Output Detail: 4 to 20 mA; Upscale < 26 mA, Downscale <3.8 mA
Repeatability: ±0.01%
Response Time: 200 ms
Humidity Range: 5 to 85% RH non condensing
Setup Controls: Trimpot/Switch
Supply Voltage: 12 to 32 Vdc
Sheath Material: N/A
Housing Material: Aluminum, Epoxy, Polycarbonate
Electrical Output: 4 to 20 mA
Supply Power Note: 12 to 32 Vdc; Reverse polarity protected
Supply Power Type: DC
Thermocouple Type: J
Repeatability Note: ±0.1% of voltage input span
Supply Power Effects: ±0.01%/V
Electrical Connection: Screw Terminal
Temperature Coefficient: ±0.02% /°C
Temperature Input Range: 0 to 600°C
Cold Junction Compensation: ±2°C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -20 °C
Zero Setting Adjustable Range: 0.05
