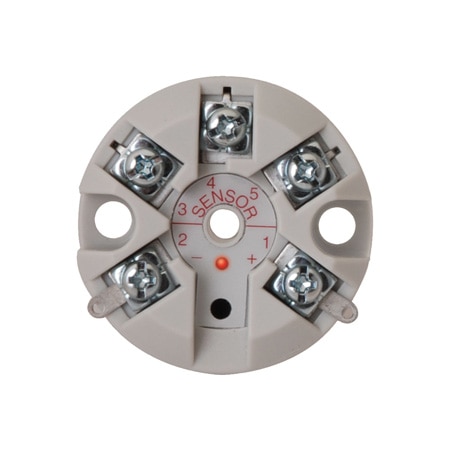

OMEGA TX206TH ຕົວສົ່ງສະເພາະຫົວວັດອຸນຫະພູມ Thermistor ທີ່ມີພາລະກິດ Loop Powered ພ້ອມອອກສະເຫຼີມ 4 ຫາ 20 mA (Thermistor)
Height: 21 mm
Weight: 31 g
Accuracy: ± 5 µA
Diameter: 43 mm
Span, Min: 5°C
Input Type: Thermistor
Calibration: Pushbutton/Software
Output Load: [(Vsupply-10)/21] kΩ
Sensor Type: Transmitter
Probe Length: 0 mm
Warm Up Time: 1 min to full accuracy
Accuracy Note: (mA output/2000) or 5 uA (whichever is the greater)
Output Detail: 2-wire (4 to 20) mA current loop Maximum Output: 21.5 mA Minimum Output: <3.75 mA
Response Time: 1 sec
Start Up Time: I out < 4 mA during start up
Humidity Range: 10 to 90% RH non condensing
Input Accuracy: ± 0.2 %
Setup Controls: Pushbutton/Software
Supply Voltage: 10 to 30 Vdc
Sheath Material: N/A
Thermal Effects: ± 2 uA/°C, ± 0.02 %/°C
Electrical Output: 4 to 20 mA
Supply Power Type: DC
Thermocouple Type: N/A
Self Heating Effect: 0.2 uA/V
Input Control Signal: N/A
Electrical Connection: Screw Terminal
Programmable Functions: offset, Range, Sensor Burnout Indication, sensor type
Temperature Input Range: N/A
Storage Temperature, Max: 90 °C
Storage Temperature, Min: -50 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
