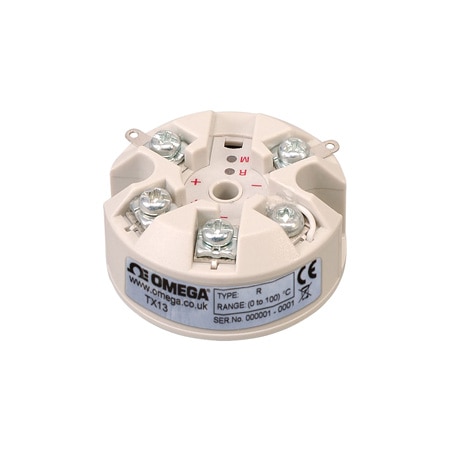

OMEGA TX13 ຕົວສົ່ງອຸນຫະພູມຂາຍ Thermocouple ມີປຸ່ມກຳນົດຄ່າ (Thermocouple, Voltage, J, K, T, E, R, S, N, K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C)

Height: 21 mm

Weight: 31 g

Accuracy: ± 5 µA

Diameter: 43 mm

Approvals: BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F

Isolation: Galvanic Isolatiion, 250 Vdc

Stability: Offset: 0.1°C/°C;Span: 0.05°C/°C

Input Type: Thermocouple, Voltage

Calibration: Pushbutton

Output Load: [(Vsupply-10)/20] kΩ

Sensor Type: Transmitter

Probe Length: 0 mm

Warm Up Time: 1 min to full accuracy

Accuracy Note: (mA output/2000) or 5 uA (whichever is the greater)

Output Detail: 2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition)

Response Time: 1 sec

Start Up Time: I out < 4 mA during start up

Humidity Range: 10 to 90% RH non condensing

Input Accuracy: ± 0.5 °C

Setup Controls: Pushbutton, Program LED will flash in bursts

Supply Voltage: 10 to 30 Vdc

Sheath Material: N/A

Thermal Effects: 1 uA/°C

Update Rate, Max: 500 ms

Electrical Output: 4 to 20 mA

Supply Power Type: DC

Thermocouple Type: J, K, T, E, R, S, N

Self Heating Effect: 0.2 uA/V

Input Control Signal: -10 to 70 mV

Electrical Connection: Screw Terminal

Programmable Functions: offset, Range, Sensor Burnout Indication, sensor type

Temperature Input Range: K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C

Storage Temperature, Max: 90 °C

Storage Temperature, Min: -50 °C

Cold Junction Compensation: ±0.05°C/°C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Cold Junction Temperature Accuracy: ±0.5 °C
