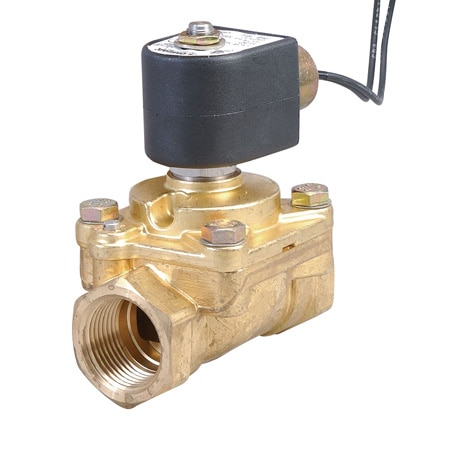

OMEGA SV292 ວາວເວຍ 2 ທາງ, NO, ຄວບຄຸມໂດຍພາຍໃນ, ວາວເຊື້ອງຕ້ານນ້ຳກະທົບ Solenoid Valves (12.5 gal/min, 1 in, NPT Male, 1 in, Pilot Operated, Normally Open)
Mounting: Pipe mounting, any direction
Cv Factor: 12.5 gal/min
Materials: Brass, Nitrile Rubber
Coil Power: 10 W
Duty Cycle: 100%
Media Type: N/A
Valve Type: Pilot Operated
Orifice Size: 1 in
Supply Voltage: 120 Vac
Valve Position: Normally Open
Static Pressure: 5 times max psid
Enclosure Ratings: IP65, NEMA Type 4
Materials, Wetted: Brass, Buna-N (NBR), Copper, Stainless Steel
Supply Power Note: 10 W, 120 Vac, Class F
Open Response Time: 100 to 250 ms
Close Response Time: 0.5 to 4.5 s
Media Compatibility: Water
Additional Features 1: Slow Closing
Operating Pressure, Max: 230 psi
Operating Pressure, Min: 5 psi
Process Connection Size: 1 in
Process Connection Type: NPT Male
Process Temperature, Max: 85 °C
Operating Temperature, Max: 50 °C
Operating Temperature, Min: -9 °C
