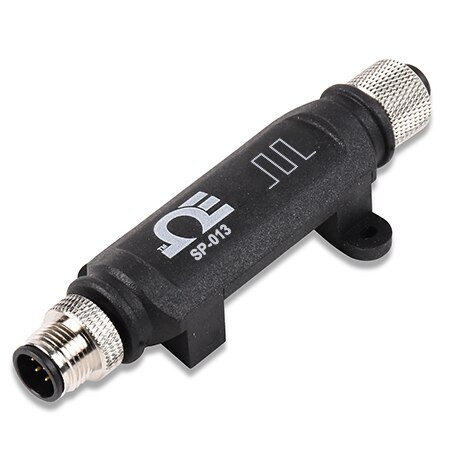

OMEGA SP-013-1 Omega Link M12 ຕອນຕິດຕໍ່ດິຈິຕອນສະມາດມອດູເລອິນເຕີເຄານເຕີ/ໂຕທອລາຍເຊີ (Rate, Pulse Width, Pulse Delay, Duty Cycle, Counters, Digital Input)
Width: 22.1 mm
Length: 96.7 mm
Software: Compatible with OEG, SYNC, and OMEGA Cloud
Approvals: CE, UKCA
Input Note: ON: 1.0 Vdc, OFF: 0.7 Vdc, Internal Pull Up/Down: 1.5k to 3.0 Vdc, Comparator (Pulse) Input: 100 mV, 500 mV, 1.0 Vdc, 2.0 Vdc
Configuration: Configurable via Omega Link Smart Interface and SYNC configuration software
Digital Input: VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Number of I/O: 2
Digital Output: 2x Open Drain 100 mA max, VMAX = 30 VDC
Supply Voltage: 2.8 to 3.3 Vdc
Measurement Type: Rate, Pulse Width, Pulse Delay, Duty Cycle, Counters, Digital Input
Enclosure Ratings: IP67
Supply Power Type: DC
Number of Channels: 1
Input Control Signal: Current Loop: 4 to 20 mA, Voltage: 0 to 1.0 Vdc, 0 to 2.0 Vdc
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -40 °C
