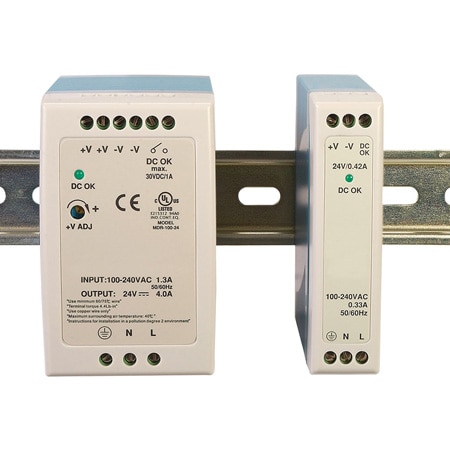

OMEGA SL-PS-S2012 ອຸປະກອນຈົດພະລັງງານ, ຕິດຕັ້ງບົດລະດັບ DIN, 10 ຫາ 100 W ສໍາລັບ 5, 2, 4, 48 Vdc
Noise: 150 mVp-p
Width: 22.5 mm
width: 22.5 mm
Height: 90 mm
Length: 100 mm
Approvals: UL508, EN60950-1* approved, NEC Class 2/LPS compliant Harmonic Current: Compliance to EN61000-3-2,-10
Efficiency: 84 to 88%
EMC Standard: EN 50204, EN 55024, EN 61204-3A (light industry level), IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-1
Current Rating: 1.67 A
Inrush Current: Cold start 20 A/115 Vac, 40 A/230 Vac
Electrical Output: 12 Vdc
Power Consumption: 20 W
Supply Power Note: 85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc
Voltage Tolerance: ± 1 %
Withstand Voltage: I/P-O/P: 3k Vac; I/P-FG: 1.5k Vac ;O/P-FG: 0.5k Vac
Operating Humidity: 20 to 90% RH non-condensing
Overload Protection: 105 to 160%, 27.6 to 32.4V
Additional Features 1: OK active signal, 18 to 27V/20 mA
Frequency Input Range: 47 to 63 Hz
Insulation Resistance: 100 M Ω
Line and Load Regulation: ±1%
Insulation Resistance Note: I/P-O/P, I/P-FG, O/P-FG: 100 M Ω/ 500 Vdc EMI compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B
Operating Temperature, Max: 70 °C
Operating Temperature, Min: -20 °C
