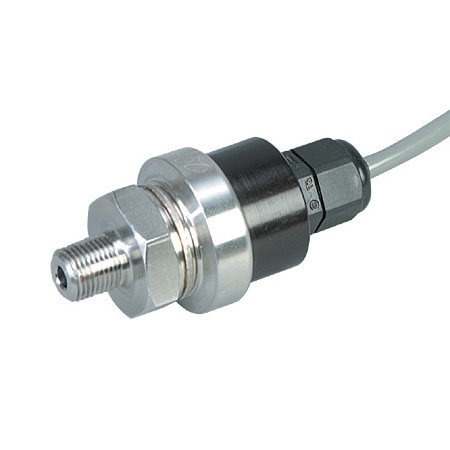

OMEGA PX482AD-300GI OEM Style, Compact, Vacuum and Absolute Pressure Transducers (Gauge, 300 psi, NPT Male, 1/8 in)
Shock: 30 g
Height: 72 mm
Weight: 142 g
Accuracy: ± 0.3 %
Diameter: 29.7 mm
Stability: <0.25%
Vibration: 10 g, 55 to 2000 Hz
Cable Length: 0.4 m
Accuracy Note: 0.3% BFSL max (includes linearity, hysteresis and repeatability)
Output Signal: Current
Pressure Type: Gauge
Pressure, Max: 300 psi
Pressure, Min: 0 psi
Accuracy Class: > 0.25%
Burst Pressure: 3x Full Scale
Proof Pressure: 2x Full Scale
Stability Note: 1-Year Stability: <0.25% FS
Supply Voltage: 10 Vdc
Electrical Output: 4 to 20 mA
Materials, Wetted: 316L Stainless Steel
Output Resistance: 50000 Ω
Burst Pressure Note: 3X FS
Proof Pressure Note: 2X FS
Electrical Connection: DIN 43650 C (solenoid valve)
Electrical Output Note: 0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output
Process Connection Size: 1/8 in
Process Connection Type: NPT Male
Process Temperature, Max: 100 °C
Process Temperature, Min: -40 °C
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -40 °C
Compensated Temperature, Max: 75 °C
Compensated Temperature, Min: -25 °C
Thermal Effect on Span error, Max: 2% FS maximum over compensated temperature range
Thermal Effect on Zero error, Max: 2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range
