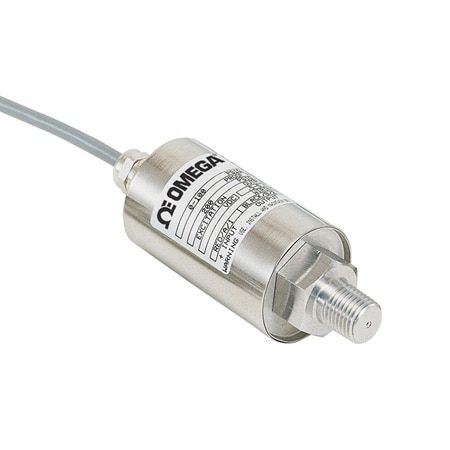

OMEGA PX315-3KGI ຕົວສົ່ງຄວາມດັນສຳລັບວັດຖຸປະສົງທົ່ວໄປ (Gauge, 3000 psi, NPT Male, 1/4 in)

Shock: 50 g, 11 ms half-sine

Weight: 210 g

Accuracy: ± 0.25 %

Stability: ± 0.5%

Vibration: 15 g, 10 to 2000 Hz

Gauge Type: Stainless steel diaphragm,silicone oil-filled piezoresistive semiconductor sensor

Accuracy Note: ± 0.25% FS (linearity, hysteresis, repeatability); vacuum ranges ± 0.35% typ, ± 0.5% max

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 3000 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Proof Pressure: 2x Full Scale

Supply Voltage: 12 to 30 Vdc

Input Resistance: (Vpower – Vmin) x 50 (1500 Ω max)

Electrical Output: 4 to 20 mA

Materials, Wetted: 17-4 Stainless Steel, 300 Stainless Steel

Supply Power Note: 12 to 30 Vdc unregulated

Zero/Balance Error: 4 mA ± 2%

Proof Pressure Note: 200% or 13,000 psi max, whichever is less

Electrical Connection: DIN 43650 C (solenoid valve)

Electrical Output Note: 4 to 20 mA (2-wire reverse polarity protected)

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -18 °C

Compensated Temperature, Max: 71 °C

Compensated Temperature, Min: -1 °C

Span Setting Adjustable Range: 16 mA ± 1% FS
