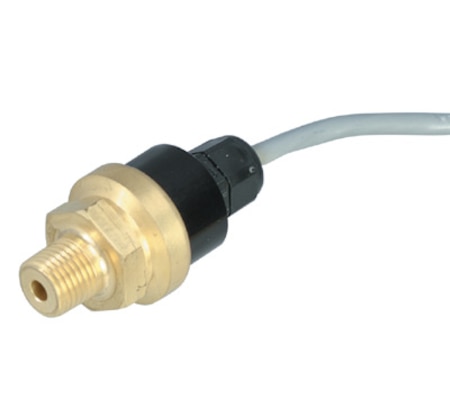

OMEGA PX182B-015GI OEM Style, Compact Pressure Transducers with Cable | PX180B (Gauge, 15 psi, NPT Male, 1/8 in)
Shock: 30 g
Height: 72 mm
Weight: 142 g
Accuracy: ± 0.3 %
Diameter: 29.7 mm
Bolt Size: 1.125 in
Stability: <0.25%
Vibration: 10 g, 55 to 2000 Hz
Cable Length: 0.4 m
Accuracy Note: 0.3% BFSL maximum (includes linearity, hysteresis and repeatability)
Output Signal: Current
Pressure Type: Gauge
Pressure, Max: 15 psi
Pressure, Min: 0 psi
Accuracy Class: > 0.25%
Burst Pressure: 3x Full Scale
Proof Pressure: 2x Full Scale
Stability Note: 1-Year Stability :<0.25% FS
Supply Voltage: 10 Vdc
Electrical Output: 4 to 20 mA
Materials, Wetted: Borosilicate, Brass, Epoxy, RTV, Silicon
Output Resistance: 50000 Ω
Supply Power Note: 10 Vdc (regulated)
Burst Pressure Note: 3X FS or 750 psig, whichever is less
Proof Pressure Note: 2x FS (750 psig for 500 psig range)
Electrical Connection: Cable
Process Connection Size: 1/8 in
Process Connection Type: NPT Male
Process Temperature, Max: 100 °C
Process Temperature, Min: -40 °C
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -40 °C
Compensated Temperature, Max: 75 °C
Compensated Temperature, Min: -25 °C
Thermal Effect on Span error, Max: ± 1% gage
Thermal Effect on Zero error, Max: 2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range
