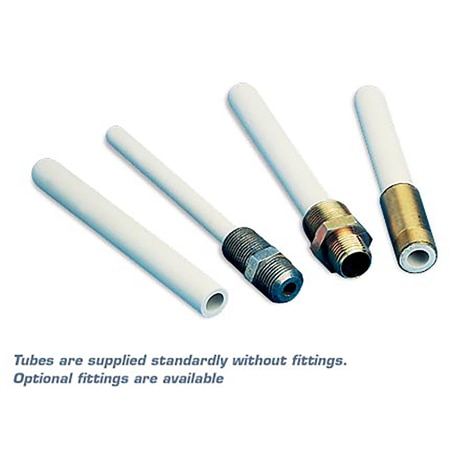

OMEGA PTRM-7161116-18-3 ທ່ອປ້ອງກັນເຊຣາມິກມີອຸປະກອນເພີ່ມເຕີມເລືອກໄດ້ (7/8 in, Compression Fitting, 85% Mullite & 15% Glass)
Length: 18 in
Hardness: 9 Mohs
Te Value: 800 °C
Sensing End: Closed
Hardness Note: Hardness (Mohs Scale): 7.5
Te Value Note: Te Value (Volume Resistivity of 1 mega Ω cm): 800°C (1470°F)
Tube Material: 85% Mullite & 15% Glass
Inner Diameter: 0.4375 in
Outer Diameter: 0.6875 in
Gas Permeability: Gas Tight
Specific Gravity: 2.8
Tensile Strength: 18000 psi
Volume Resistivity: 10^13 Ω-cm
Dielectric Constant: 5.8
Dielectric Strength: 250 V/mil
Fabrication Methods: Cast
Transverse Strength: 27000 psi
Compressive Strength: >190,000 psi
Thermal Conductivity: 40 W/mK
Process Connection Size: 7/8 in
Process Connection Type: Compression Fitting
Dielectric Constant Note: Dielectric Constant (1MC): 5.80
Thermal Conductivity Note: Approximate Thermal Conductivity (BTU)(in)/(hr)(ft^2 )(°F) 24°C (75°F): 40 800°C (1470°F): 25
Operating Temperature, Max: 1750 °C
Operating Temperature, Min: 0 °C
Thermal Expansion Coefficient: 3.3 × 10^-6 C^-1
Thermal Expansion Coefficient Note: Coefficient of Linear Thermal Expansion 24 to 250°C (75 to 480°F): 3.3 x 10^-6 24 to 500°C (75 to 930°F): 4.0 x 10^-6 24 to 1000°C (75 to 1830°F): 5.0 x 10^-6
