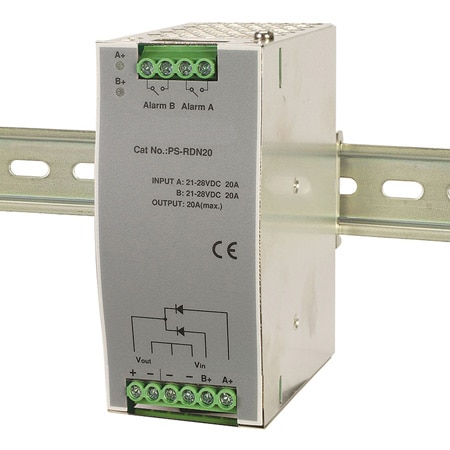

OMEGA PS-RDN20 Power Supply Redundancy Buffer Module DIN Rail Mount w/ Relay Out

MTBF: 1,000,000 hours

Width: 55.5 mm

Height: 125.2 mm

Length: 100 mm

Weight: 0.5 kg

Approvals: EN60950-1, LP-PS-4524 UL508 Harmonic Current: Compliance to EN61000-3-2,-3 Mounting: Compliance to IEC60068-2-9

Isolation: Terminal-Chassis: >100M Ω/500 Vdc 25°C (77ºF) 70% RH

Vibration: 10 to 500 Hz, 2G 10 min/ 1 cycle, period for 60 min each along X, Y, Z axes

Relay Note: Input Voltage Alarm: When input is 30V (±5%), relay contacts close

EMC Standard: EN 55022B, ENV 50204A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8

Relay Rating: 30 Vdc, 1A

Input Current: 20 A

Current Rating: 0.041666666666667

Dropout Voltage: 0.5 V

Reverse Voltage: 30V

Number of Inputs: 2

Electrical Output: 20 Vdc

Power Consumption: N/A

Relative Humidity: 10 to 95%

Withstand Voltage: Terminal-Chassis: 0.5 K Vac, Relay Contacts-Terminal: 0.5 K Vac

Operating Humidity: 20 to 90% RH non-condensing

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C
