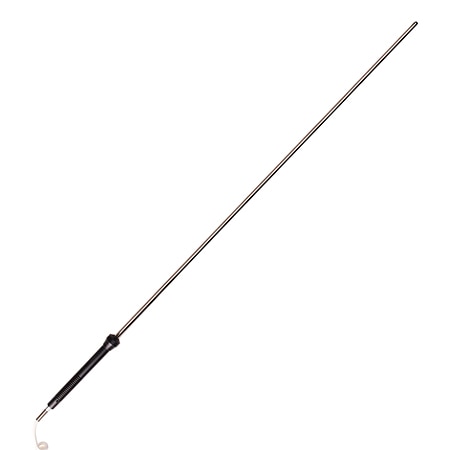

OMEGA PR-16-2-100-1/16-3-E ອຸປະກອນຈັບ RTD Utility Handle Probe (Stripped Leads, 500 °C, Class A)
Shock: IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Accuracy: Class A
Vibration: IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; number of sweep cycles 10 and acceleration 5g (15 probes tested together) Duration: 1 day
Insulation: TPE
Probe Type: Immersion Probe
Wire Gauge: 28 AWG
Cable Length: 5 ft
Probe Length: 3 in
Accuracy Note: Class A from -100 to 450°C (-148 to 842°F); or else Class B
Probe Diameter: 0.0625 in
Number of Wires: 2
Sheath Material: 304 Stainless Steel
Enclosure Ratings: IP67
Temperature Range: Extreme
Nominal Resistance: 100 Ω
Electrical Connection: Stripped Leads
Resistance/Curve Note: 100 Ω and 1000 Ω at 0°C standard;TCR = 0.00385 Ω/Ω/°C standard
Temperature Coefficient: 0.00385 Ω/Ω/°C
Temperature Probe Style: Immersion Probe
Temperature Sensor Type: RTD
Process Temperature, Max: 500 °C
Process Temperature, Min: -200 °C
Temperature Coefficient Note: α = 0.00385 Ω/Ω/°C
