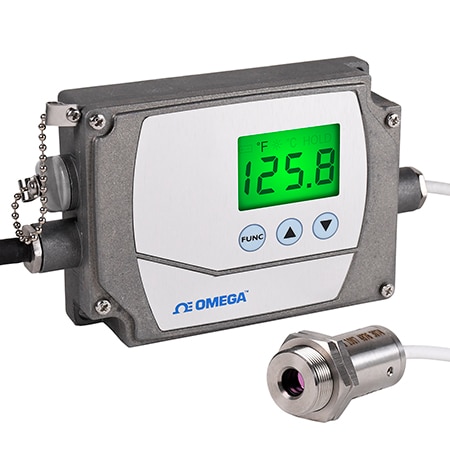

OMEGA OS-AO50-151 ຕິດຕັ້ງອອກຜົນ IR ອຸນຫະພູມສູງແລະຈະຫລັກ (15:1, 800 °C, 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc)

Weight: 600 g

Display: Yes

Isolation: Power supply, *Digital output and Analog output are galvanically isolated * Not applicable for USB 2.0 digital output

Laser Power: None

Cable Length: 3 m

Laser Output: false

Relay Output: 60 Vdc

Accuracy Note: ± 1% of the measured value or 3°C whichever value is greater (The sensor head must be at constant ambient temperature for a minimum of 15 minutes)

Field of view: 15:1

Housing Width: 82.5 mm

Output Detail: 0 to 20mA, 4 to 20mA, 0 to 10V, Thermocouple Type “K” or “J”, Relay Output with hysteresis 60V DC/42V AC RMS,0.4A

Output Signal: Current, Voltage

Repeatability: 0.003

Response Time: 20 ms

Control Output: Relay Output with hysteresis 60V DC/42V AC RMS,0.4A

Data Interface: USB

Housing Height: 33 mm

Housing Length: 112.5 mm

Supply Voltage: 12 to 28 Vdc

Emissivity, Max: 1.2

Emissivity, Min: 0.1

Sighting Option: None

Housing Material: Stainless Steel,Zinc

Electrical Output: 0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc

Enclosure Ratings: IP65

Intrisically Safe: No

Power Consumption: 2.5 W

Relay Output Note: Relay Output with hysteresis 60V DC/42V AC

Supply Power Note: 12V to 28V DC with reverse polarity protection

Photodetector Type: Thermopile

Repeatability Note: 0.3% of reading + 1°C

Response Time Note: 20 msec adjustable up to 10 sec

Relative Humidity, Max: 0.95

Relative Humidity, Min: 10%

Spectral Response, Max: 14 μm

Spectral Response, Min: 8 μm

Temperature Coefficient: ± 0.06%

Process Temperature, Max: 800 °C

Process Temperature, Min: 0 °C

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 120 °C

Operating Temperature, Min: 0 °C

Temperature Coefficient Note: ± 0.06 °C/°C (0.06 °F/°F) or ± 0.06 % (whichever is greater)
