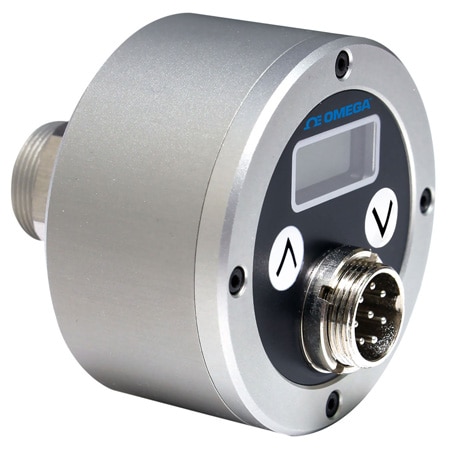

OMEGA OS-AE11-201 ອາລະບົດ IR ຂະໜາດກະທົບພ້ອມການປັບປຸງ Emissivity ໄດ້ 6 ໂຕອັກສອນ LCD (500 °C)
Optics: 20:1
Weight: 200 g
Display: Yes
Approvals: asd
Impedance: 10 kΩ
Statistics: Average, Peak Hold, Valley Hold
Cable Length: 3 m
Current Draw: 100 mA
EMC Standard: EN 61326
Laser Output: false
Accuracy Note: ± 1% of reading or ± 1.5ºC, whichever is greater
Output Signal: Current
Repeatability: ± 0.5%
Response Time: 150 ms
Supply Voltage: 24 Vdc
Emissivity Note: 0.100 ~ 1.000 (adjustable)
Emissivity, Max: 1
Emissivity, Min: 0.1
Housing Material: Aluminum
Enclosure Ratings: IP65, NEMA Type 4
Intrisically Safe: No
Supply Power Note: 24 VDC ± 20%
Repeatability Note: ± 0.5% of reading or ± 1ºC, whichever is greater
Laser Classification: Class 2
Loop Resistance, Max: 500 Ω
Additional Features 1: Fixed Mounting Bracket, Adjustable Mounting Bracket
Relative Humidity, Max: 95%
Relative Humidity, Min: 10%
Spectral Response, Max: 14 μm
Spectral Response, Min: 8 μm
Temperature Resolution: 0.1 °C
Process Temperature, Max: 500 °C
Process Temperature, Min: 0 °C
Storage Temperature, Max: 80 °C
Storage Temperature, Min: -20 °C
Operating Temperature, Max: 70 °C
Operating Temperature, Min: 0 °C
