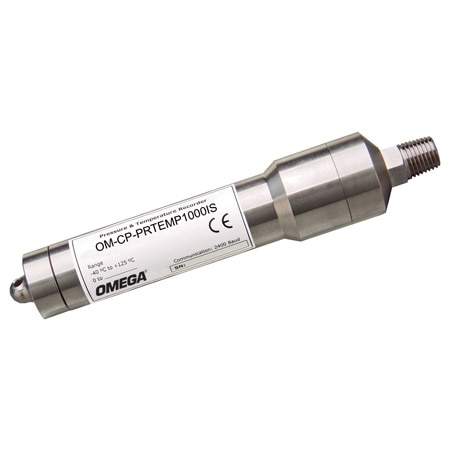

OMEGA OM-CP-PRTEMP1000IS-1-500-A ບັນທຶກຄວາມດັນແລະອຸນຫະພູມທີ່ມີຄວາມປອດໄພໃນຕົວເຄື່ອງທີ່ທົນທານ (500 psi, Absolute, NPT Male, 1/4 in)
Length: 163 mm
Memory: 16,383 Readings
Weight: 338 g
Diameter: 33 mm
Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Approvals: CE, FM
Baud Rate: 2400
Materials: Stainless Steel
Resolution: Pressure : 0.05 psi, Temperature: 0.1°C
Calibration: Digital calibration through software and automatically recorded within device
Start Modes: Delayed Start, Immediate Start
Battery life: up to 1 yr
Accuracy Note: Calibration Accuracy : Pressure: 2% FSR, 0.25% @ 25°C typical; Time Accuracy : 1 minute/month at 20°C, (RS-232 port not in use); Pressure Repeatability : ± 0.5% FSR; ± 0.2% typical
Pressure Type: Absolute
Pressure, Max: 500 psi
Pressure, Min: 0 psi
Sampling Rate: 0.5 Hz (2 seconds between updates)
Time Accuracy: 1 minute/month
Data Interface: USB, RS232
Humidity Range: 0 to 100% RH
Millivolt Range: N/A
Measurement Type: Pressure, Temperature
measurement-type: Pressure, Temperature
Supply Power Type: Battery
Frequency Response: Pressure Response Time: 0.1 ms
Sampling Rate Note: 1 reading every 2 seconds, to 1 every 12 hours
Real Time Recording: The device may be used with PC to monitor and record data in real-time
Calibration Accuracy: Temperature : ±0.5°C, Pressure : 2%
Battery Size and Type: 3.6V Li-ion
Number of Measurements: 2
Pressure Repeatability: ± 0.5%
Process Connection Size: 1/4 in
Process Connection Type: NPT Male
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -40 °C
Measuring Temperature Range, Max: 80 °C
Measuring Temperature Range, Min: -40 °C
