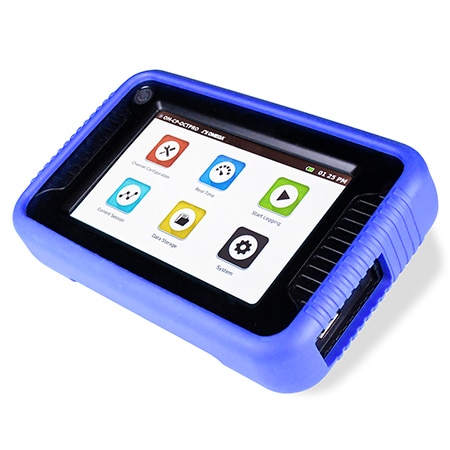

OMEGA OM-CP-OCTPRO ບັນທຶກຂໍ້ມູນພະນັກງານພິມ 8-ຊ່ອງ - ຈໍສະຕິກ (Thermocouple, RTD, Thermistor, Current,Voltage, Digital, J, K, T, E, R, S, B, N)
Width: 4.4 in
Height: 6.65 in
Length: 1.41 in
Memory: 1,000,000 or 5,000,000 Readings
Weight: 1.3 lb
Accuracy: ± 0.1 %
Mounting: Handheld, Tabletop or Wall Mounting
Materials: Polycarbonate
Input Type: Thermocouple, RTD, Thermistor, Current,Voltage, Digital
Resolution: 0.1 °C
Calibration: Factory calibration is recommended annually
Memory Note: 1,000,000 or 5,000,000 Readings
Start Modes: Delayed Start, Immediate Start
Display Note: LCD Touchscreen: 5 inch LCD capacitive touchscreen.
Display Type: LCD
Accuracy Note: Current Accuracy: ±0.024 mA Voltage Accuracy: ±0.1 mV, ±0.01 V Thermistor Accuracy: ±0.50% RTD Accuracy: ±0.1 °C Thermocouple Accuracy: J, K, T, E, N: ±0.5 °C R, S, B: ±2.0 °C
Input Current: -5 to 50 mA
Sampling Rate: 4 kHz
Data Interface: USB
Dimensions Note: 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x 35.8 mm) Data logger only
Impedance Input: Current Input Impedance: 30Ω,Voltage Input Impedance: 1 GΩ,Frequency Input Impedance: 58 kΩ
Resolution Note: Current Resolution: 0.0001 mA Voltage Resolution: 0.0001 mV, 0.0001 V RTD Resolution: 0.01 °C Thermisor Resolution: 0.01 °C Thermocouple Resolution: J, K, T, E, N: 0.1 °C R, S, B: 0.5 °C
Pulse Input Note: 0 to 4,000,000,000 Pulses
Enclosure Ratings: IP20
Relative Humidity: 0 to 95% RH non-condensing
Supply Power Note: • Rechargeable 3.7 V Lithium Ion Battery, • Continuous on-screen sampling: 9 hours; Stand-by mode: 100 hours
Supply Power Type: USB
Thermocouple Type: J, K, T, E, R, S, B, N
Number of Channels: 8
Input Control Signal: Millivolt input: -100 to 2450 mV Volt input: -0.5 V to 12.0 V
Battery Size and Type: 3.7V Li-ion
Frequency Input Range: 0 to 25 kHz
Wiring/Connector Table: 2-, 4-Wire RTD
Temperature Measurement Range: J: -200 to 760 °C,K: -270 to 1370 °C,T: -270 to 400 °C,E: -270 to 980 °C,R: -50 to 1760 °C,S: -50 to 1760 °C,N: -270 to 1300 °C,B: 50 to 1820 °C,RTD: -200 to 850 °C,TH 2252Ω, 10KΩ: -25 to 150°C
