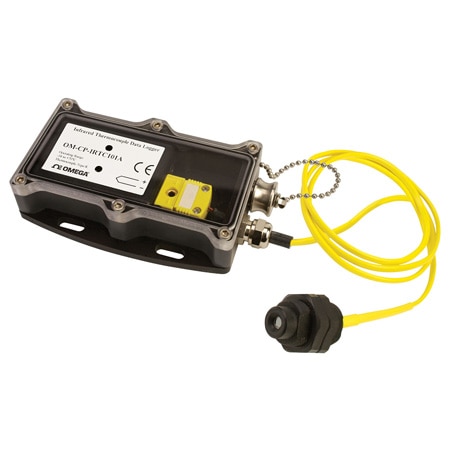

OMEGA OM-CP-IRTC101A ອຸປະກອນບັນທຶກຂໍ້ມູນອຸນຫະພູມອີນເຟຣດ (Temperature, USB, ± 2.5 °C)

Width: 56 mm

Height: 16 mm

Length: 36 mm

Memory: 500000

Weight: 24 g

Spot Size: 8 mm (min)

Alarm Note: Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits

Stop Modes: Adjustable Delay Stop, Manual Through Software

Form factor: Desktop

Memory Note: 500,000 readings per channel (1,000,000 readings total) software configurable memory wrap 250,000 readings in multiple start/ stop mode

Samples,Max: 50000

Start Modes: Adjustable Delay Start, Immediate Start, Push-button

Battery life: up to 10 yr

Display Type: LED

Memory Modes: Yes

Field of view: 0.04236

Sampling Rate: 1 Hz (1 update/second)

Time Accuracy: ± 1 minute/month

Data Interface: USB

LED Indicators: Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode; Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition

Supply Voltage: 9 Vdc

Measurement Type: Temperature

Number of Inputs: 1

Supply Power Type: Battery

Sampling Rate Note: 1 reading every 2 seconds to 1 every 12 hours

Data Interface Note: USB (interface cable required); 115,200 baud

Real Time Recording: May be used with PC to monitor and record data in real time

Temperature Accuracy: ± 2.5 °C

Battery Size and Type: 3.6V Li-ion

Electrical Connection: Sub-D Female Miniature Connector

Software Compatibility: XP SP3/Vista/7 and 8 (32-bit and 64-bit)

Spectral Response Note: 6.5 - 14µ

Temperature Resolution: 0.1 °C

Temperature Sensor Type: Thermocouple Type K

Process Temperature, Max: 80 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -18 °C

Thermocouple Resistance, Max: 3000 Ω

Infrared Thermocouple Dimensions: 3.25 L x 1.80 cm Dia
