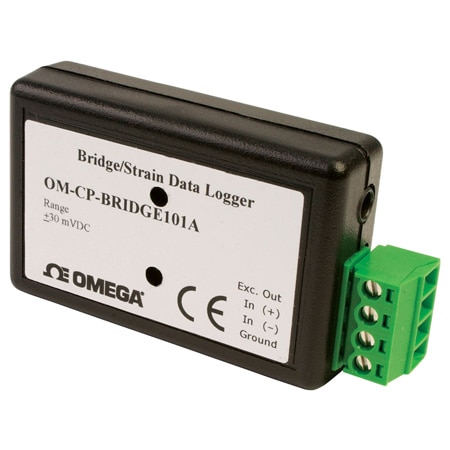

OMEGA OM-CP-BRIDGE101A-150MV ອຸປະກອນບັນທຶກຂໍ້ມູນສະຕຣອງແກດ USB ຂະໜາດກະທົບກະທົບຂະໜາດນ້ອຍ ມີພື້ນທີ່ຈັກເກັບໃຫຍ່ (Strain, ± 160 mV)
Width: 16 mm
Height: 64 mm
Length: 36 mm
Memory: 1,000,000 Readings
Weight: 24 g
Software: Windows XP SP3 / Vista / 7 and 8 (32 and 64 - bit)
Approvals: CE
Baud Rate: 115200
Materials: ABS
Input Note: ±150 mV
Resolution: Strain: 5 µV
Stop Modes: Manual Through Software
Memory Note: 1,000,000 readings; software configurable memory wrap 333,000 readings in multiple start/stop mode
Start Modes: Delayed Start, Immediate Start
Battery life: 10 mo
Memory Modes: Yes
Accuracy Note: Calibration Accuracy : Strain: ±0.01% FSR; ±16 microvolts; Time Accuracy : ±1 minute/month at 20ºC (68ºF), stand alone data logging
Pressure Type: N/A
Pressure, Max: 0 psi
Sampling Rate: 4 Hz (4 updates/second)
Time Accuracy: ±1 minute/month
Data Interface: USB
Humidity Range: 0 to 90% RH non-condensing
LED Indicators: Green LED Blinks: 10 second rate to indicate logging; 15 second rate to indicate delay start mode;Red LED Blinks: 10 second rate to indicate low battery and/or full memory; 1 second rate to indicate an alarm condition
Data protection: Access by password
Millivolt Range: ± 160 mV
Measurement Type: Strain
Supply Power Type: Battery
Sampling Rate Note: 4 Hz to 1 every 24 hours
Real Time Recording: The device may be used with PC to monitor and record data in real-time
Calibration Accuracy: Strain : ±0.01%
Input Control Signal: 0 to 2.5 V
Battery Size and Type: 3.6V Li-ion
Number of Measurements: 1
Process Connection Size: N/A
Process Connection Type: N/A
Multi Start/Stop Mode Note: To Start the Device: Press and hold the pushbutton for five seconds, the green LED will flash during this time. The device has started logging, To Stop the Device: Press and hold the pushbutton for five seconds, the red LED will flash during this time. The device has stopped logging, Real Time Recording: The device may be used with PC to monitor and record data in real-time
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -40 °C
