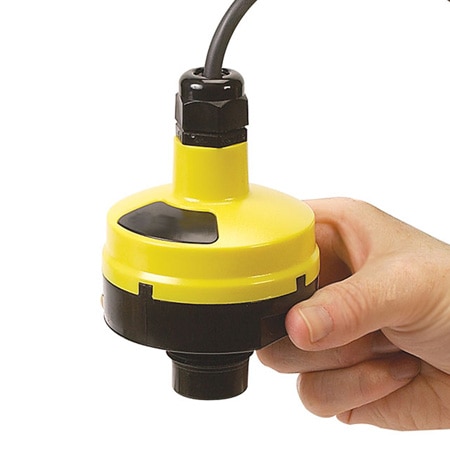

OMEGA LVCN210-B ຕົວສົ່ງສະຖານລະດັບອຸດົມສະເລີຍແລະຕົວຄວບຄຸມ (1 in, NPT Male, USB, 9.8 ft)
Height: 4.9 in
Memory: Non - Volatile
Accuracy: ± 0.2 %
Diameter: 3.06 in
Materials: FKM, Fluoroelastomer, Polycarbonate, Polyvinylidene, Fluoride
Beam Width: 2 in
Cable Type: Insulated Shielded
Compliance: CE, RoHS 2
Insulation: Polyurethane
Resolution: 0.039 in
Switch Type: SPST
Cable Length: 48 in
Configuration: Free PC Windows® USB 2.0.The level sensor is configurable via our free PC software and USB adaptor. The sensors are offered with and without USB connectors. Connectors can be used to configure many compatible level products. Download your free copy at
Output Signal: Current
Signal invert: 4 to 20 mA or 20 to 4 mA
Switch Rating: 60 VA,1A max
Data Interface: USB
Supply Voltage: 24 Vdc
Loop Resistance: 400 Ω max
Mean Hysteresis: Selectable
Number of Wires: 2
Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last
Contact Fail-Safe: Power Loss: Hold Last
Electrical Output: 4 to 20 mA
Enclosure Ratings: NEMA Type 13
Connector Included: None
Media Compatibility: Alkaline solutions, Dilute Acids, Hydraulic Oil, Light Oil, Oil, Solvents, Water, Water-based fluids
Measuring Range, Max: 9.8 ft
Measuring Range, Min: 0 ft
Operating Pressure, Max: 30 psi
Process Connection Size: 1 in
Process Connection Type: NPT Male
Process Temperature, Max: 60 °C
Process Temperature, Min: -7 °C
Temperature Compensation: Automatic
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -35 °C
