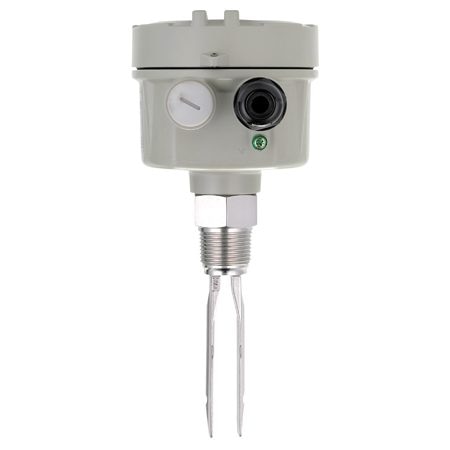

OMEGA LTUR-3022 ສະຫຼຸບລະດັບສະກຸນມາດຕະຖານປະເພດຕົວດັດຈຸດຄວາມຍາວຄົງ 316 SS (1 in, NPT Male, SPDT NO/NC, Selectable)

Approvals: CE, RoHS, UKCA

Materials: Aluminum, 316 Stainless Steel

Vibration: 350 to 370 Hz

Time Delay: 1 to 3 sec

Sensitivity: Switch selectable - HI/LO

Switch Type: SPDT NO/NC, Selectable

Density, Max: 0.7g/cm ³

Probe Length: 4 in

Switch Rating: 5 A @ 250Vac/28Vdc

Supply Voltage: 20 to 250 Vac/Vdc

Enclosure Ratings: IP65

Materials, Wetted: 316 Stainless Steel

Power Consumption: 10 VA

Supply Power Type: AC/DC

Media Compatibility: Oil, Solvents, Water

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Operating Pressure, Max: 600 psi

Process Connection Size: 1 in

Process Connection Type: NPT Male

Process Temperature, Max: 130 °C

Process Temperature, Min: -40 °C

Vertical Load on Rod, Max: 20 Nm

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -40 °C
