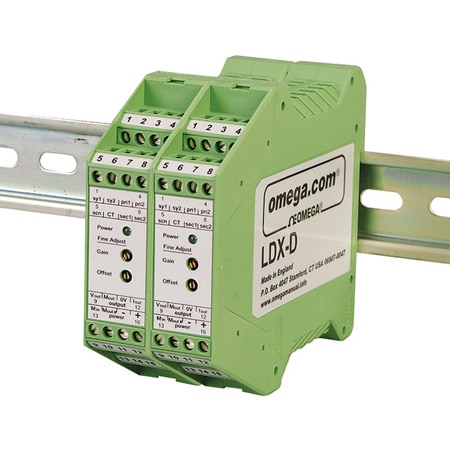

OMEGA LDX-D ອຸປະກອນປັບສະພາບສັນຍານບົດລະບົບ DIN Rail ສໍາລັບ AC LVDT Transducers (AC Voltage, 55 to 5000 mV)
Width: 22.5 mm
Height: 99 mm
Length: 111 mm
Offset: Output Offset: Up to 100 %
Weight: 120 g
Mounting: DIN Rail 35 mm Standard
Approvals: CE
Bandwidth: 500 Hz or 1 kHz
Materials: Green Polyamide
Input Type: AC Voltage
Adjustments: Front-Panel Fine-Adjustment potentiometers facilitate setup
Output Value: Process
Warm Up Time: 15 min
Output Detail: Voltage Output: Up to ±10 Vdc Current Output: Up to 20 mA into 150 Ω load
Output Ripple: <1 mVrms
Output Signal: Current, Voltage
Supply Voltage: 10 to 30 Vdc
Load Resistance: Load Resistance: 100 kΩ;Output Load: 150 Ω
Number of Inputs: 1
Electrical Output: 20 mA
Supply Power Note: Supply Current: Voltage Range: 140 mA @ 10 Vdc, 60 mA @ 30 Vdc Current Range: 160 mA @ 10 Vdc, 70 mA @ 30 Vdc
Supply Power Type: DC
Excitation Voltage: 3 Vrms
Supply Power Effects: Transducer Primary Frequency (kHz): 5-, 10- or 13-link selectable
Voltage Output Range: ± 10 Vdc
Electrical Connection: Screw Terminal
Storage Temperature, Max: 85 °C
Storage Temperature, Min: -20 °C
Voltage Measurement Range: 55 to 5000 mV
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
