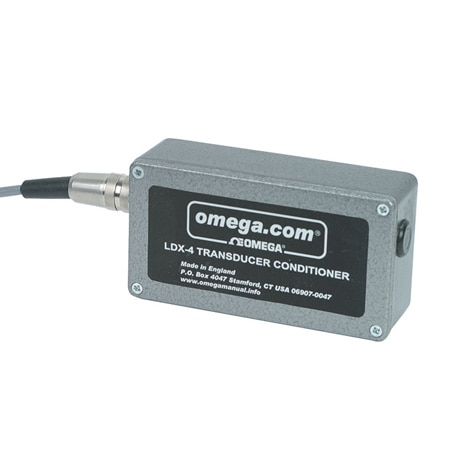

OMEGA LDX-4 ເຄື່ອງຂະຫນາດສັນຍາແລະແພວເວີສຳລັບ AC LVDT's (Voltage, +5V, ±10V, 20 mA)
Width: 40 mm
Height: 65 mm
Weight: 300 g
Approvals: CE
Bandwidth: 500 kHz
Input Type: Voltage
Protection: Input Protection: Overvoltage, reverse connection
Input Noise: 20 mV p-p @ 100 kHz
Sensitivity: Transducer : 45 to 450 mV/V
Non-Linearity: <0.1% BSL
Output Detail: Offset Range: 0 to 100%
Output Signal: Current, Voltage
Supply Voltage: 10 to 30 Vdc
Load Resistance: 1 kΩ
Electrical Output: +5V, ±10V, 20 mA
Sensor Excitation: 3 Vrms @ 5 kHz
Supply Power Note: Voltage Output: 140 mA max with 10 Vdc supply voltage; 60 mA max with 30 Vdc supply voltage Current Output: 180 mA max with 10 Vdc supply voltage; 70 mA max with 30 Vdc supply voltage
Supply Power Type: DC
Electrical Connection: Internal Terminal Block
Temperature Coefficient: Gain:<200 ppm/°C;Output:<200 ppm/°C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: 0 °C
Input Electrical Connection: 5-pin circular DIN
