Weight: 26 g
Bandwidth: 50 Hz (-3 dB)
Cable Type: Insulated Shielded
Core Weight: 1.2 g
Sensitivity: 54 mV/V/mm
Cable Length: 2 m
Accuracy Note: Provided with a transducer output impedance of 2.4 kΩ into a calibration load of 20 kΩ at 20°C (68°F); variations in these parameters will change performance
Core Material: Ni/Fe—Radio Metal 50
Input Current: 10 mA
Output Ripple: <1%
Response Time: 3 ms
Housing Length: 43 mm
Supply Voltage: 10 to 24 Vdc
Linearity Error: 0.3% FS
Housing Diameter: 20.5 mm
Housing Material: 400 Stainless Steel
Measurement, Max: 5 mm
Measurement, Min: -5 mm
Electrical Output: DC
Enclosure Ratings: IP67
Input_Current Note: energizing current at 10 vdc
Thermal Zero Effect: <0.01% FC/°C

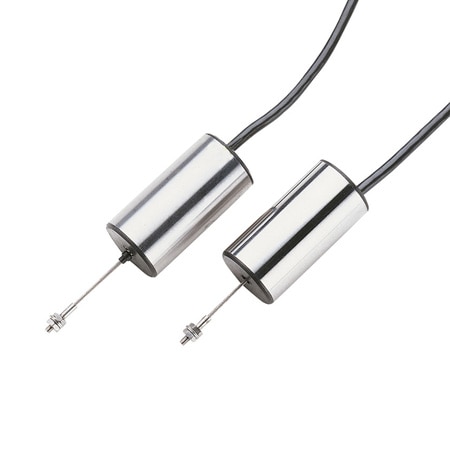

Additional Features 1: Miniature DC Displacement
Electrical Connection: Pigtail Leads
Operating Temperature, Max: 80 °C
Operating Temperature, Min: -20 °C
Compensated Temperature, Max: 80 °C
Compensated Temperature, Min: -20 °C
