Height: 0.5 in
Accuracy: ± 0.75 %
Linearity: ± 0.75%
Materials: Stainless Steel
Force Type: Compression
Hysteresis: ± 0.75%
Cable Length: 5 ft
Overload, Max: 200% FS
Repeatability: ± 0.75%
Safe Overload: 120% FS

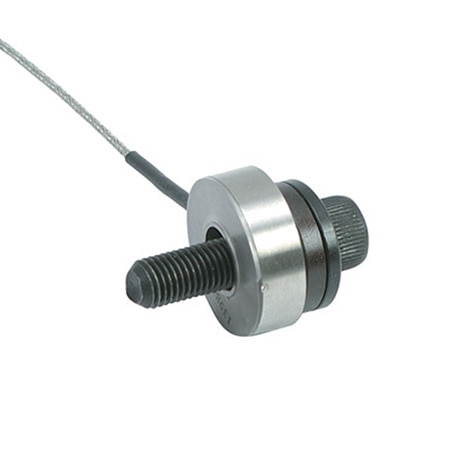

Load Cell Type: Load Washer
Outer Diameter: 1.75 in
Supply Voltage: 10 Vdc
Bridge Resistance: 700 Ω
Electrical Output: 2 mV/V
Spherical Washers: SPW-5
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 4 POINT NIST
Load Cell Capacity: 50000 lbF
Zero/Balance Error: ± 4%
Thermal Span Effect: ± 0.018% FSO/°C
Thermal Zero Effect: ± 0.018% FSO/°C
Spherical Washers ID: 0.66 in
Electrical Connection: Cable
Full Scale Deflection: 0.001 in
Through Hole Dimension: 0.76 in
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Output; White: (-) Output
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 127 °C
Operating Temperature, Min: -40 °C
