Height: 44 mm
Accuracy: ± 0.25 %
Linearity: ± 0.25%
Materials: Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.25%
Cable Length: 5 ft
Overload, Max: 300% FS
Repeatability: ± 0.25%
Safe Overload: 150% FS

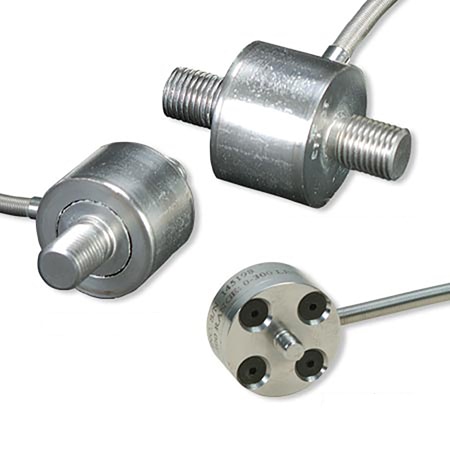

Load Cell Type: In-line
Outer Diameter: 25 mm
Supply Voltage: 10 Vdc
Input Resistance: 360 Ω min
Electrical Output: 2 mV/V
Enclosure Ratings: IP65
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Load Cell Capacity: 10000 N
Zero/Balance Error: ± 2%
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Thermal Span Effect: 0.009% FSO/°C
Thermal Zero Effect: 0.009% FSO/°C
Electrical Connection: Cable
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 16 °C
Operating Temperature, Max: 121 °C
Operating Temperature, Min: -54 °C
