Width: 25 mm
Height: 51 mm
Length: 76 mm
Weight: 1.1 kg
End Rod: MREC-M12M
Linearity: ± 0.03%
Materials: 17-4 PH Stainless Steel
Force Type: Compression, Tension
Hysteresis: ± 0.02%
Wire Gauge: 20 AWG
Load Button: MLBC-M12
Cable Length: 15 ft
Overload, Max: 300% FS
Repeatability: ± 0.01%
Safe Overload: 150% FS

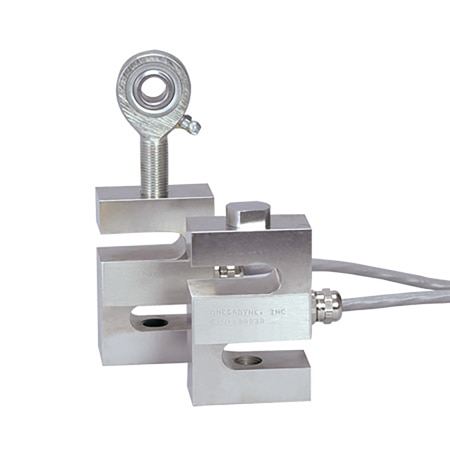

Load Cell Type: S-beam
Supply Voltage: 10 Vdc
Input Resistance: 350 ± 10 Ω
Electrical Output: 3 mV/V
Output Resistance: 350 ± 10 Ω
Supply Power Note: 10 Vdc, 15 Vdc maximum
Calibration Option: 5 POINT NIST
Interchangeability: 0.0025
Load Cell Capacity: 250 kgf
Zero/Balance Error: ± 1%
Thermal Span Effect: 0.0018% FSO/°C
Thermal Zero Effect: 0.0018% FSO/°C
Electrical Connection: Cable
Full Scale Deflection: 0.02 in
electrical-connection: Cable
Wiring/Connector Table: Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Process Temperature, Max: 71 °C
Process Temperature, Min: 17 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -40 °C
