Length: 1.2 in
Linearity: ± 0.50%
Materials: Copper, Urethane
Force Type: Compression
Hysteresis: ± 0.50%
Wire Gauge: 30 AWG
Cable Length: 9 in
Repeatability: ± 0.50%
Safe Overload: 150% FS

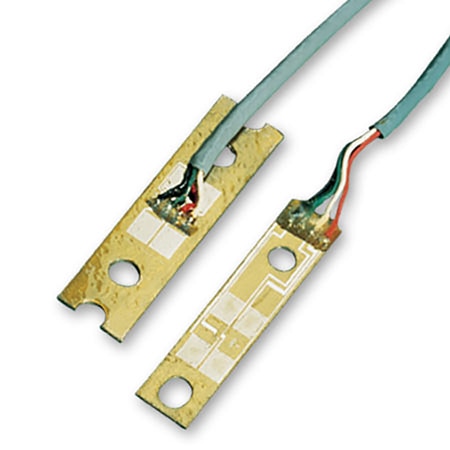

Load Cell Type: Bending Beam
Supply Voltage: 5 Vdc
Input Resistance: 1200 ± 300 Ω
Electrical Output: 2 mV/V
Output Resistance: 1200 ± 300 Ω
Supply Power Note: 5 Vdc, 12V max
Load Cell Capacity: 816 gf
Zero/Balance Error: ± 0.75 mv/V
Thermal Span Effect: 0.02%/°F
Thermal Zero Effect: 0.02% FS/°F
Electrical Connection: Cable
Full Scale Deflection: 0.05 in
Insulation Resistance: 1000 Ω @ 50 Vdc
Wiring/Connector Table: Red: (+) Excitation; Black: (-) Excitation; Green: (+) Signal; White: (-) Signal
Process Temperature, Max: 49 °C
Process Temperature, Min: -7 °C
Operating Temperature, Max: 93 °C
Operating Temperature, Min: -54 °C
